#3199 USED 1996 MAZAK QTN30 ISSUE SCREEN
$7,000.00

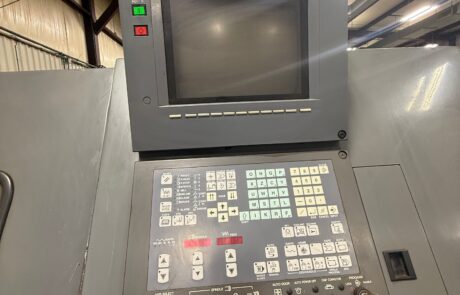

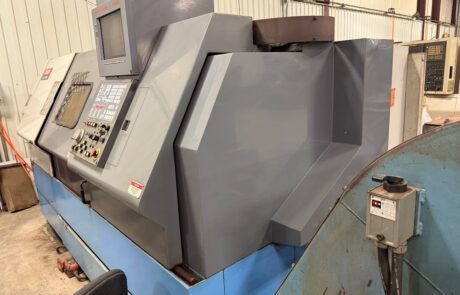

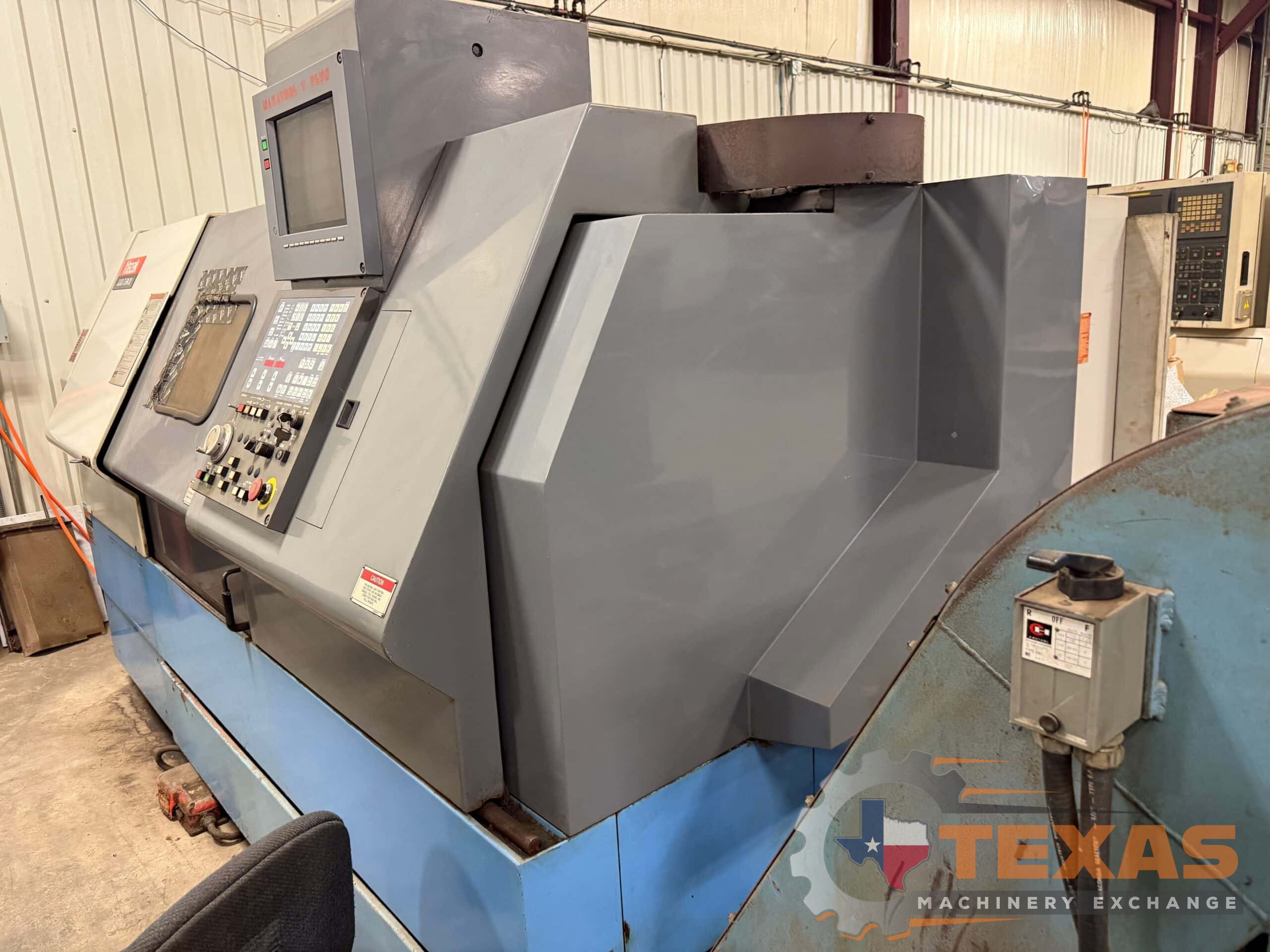

The 1996 Mazak QTN 30 is a CNC turning center designed for dependable production turning. Offered as a used unit at an accessible price point, it includes a broken CNC screen that will require repair or replacement, making it suitable for shops seeking a cost-effective entry into Mazak CNC capability.
This 1996 Mazak QTN-30 offers proven Mazatrol conversational programming and strong spindle power for a wide range of turning applications. Typical of its class, the machine supports a 10–12″ chuck, programmable tailstock, and robust octagonal turret. The following specifications are based on comparable 1996 Mazak QTN-30 units currently on record and may vary with exact build and options.
| Specification | Value |
|---|---|
| Year | 1996 |
| Model | QTN-30 |
| Manufacturer | Mazak |
| Machine Type | CNC Turning Center (2-axis) |
| Max Turning Diameter | ~20.0″ |
| Max Cutting Diameter | ~12.2″ |
| Z Travel / Max Centers | ~38–40″ |
| X Travel | ~8.0″ |
| Chuck Size | 10–12″ |
| Spindle Bore / Bar Capacity | ~3.15″ bore / ~2.7–2.8″ bar |
| Spindle Speed | 33–3,300 RPM |
| Spindle Nose | A2-8 |
| Spindle Power | ~30 HP |
| Turret | Octagonal, ~8 positions |
| Tailstock | Programmable, quill stroke ~5.1″ |
| Rapids | X ~787 IPM, Z ~984 IPM |

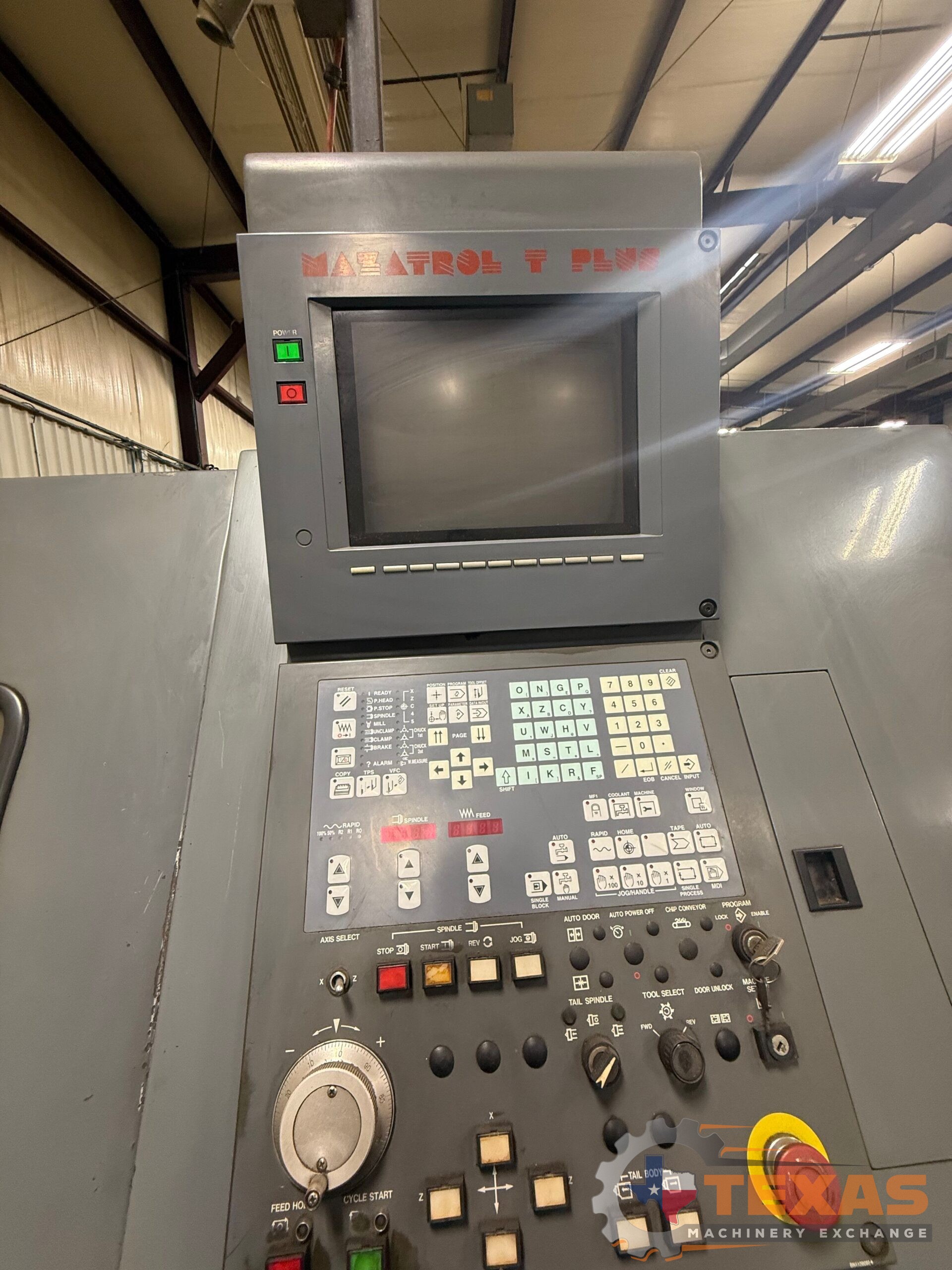

| Control | Mazatrol T-Plus |
| Dimensions | ~127″ × 76″ footprint, 72.6″ height |
| Weight | ~11,700 lbs |
| Additional Specs | Chip conveyor, coolant system |
| Final Listing Price | Request Quote |
Features & Options
- Mazatrol T-Plus conversational control
- 10–12″ hydraulic chuck
- Programmable tailstock
- Octagonal turret (~8 positions)
- Chip conveyor
- Rigid structure for heavy cutting
- Affordable, proven design for general turning
Specifications may vary by configuration. Verify with manufacturer.
