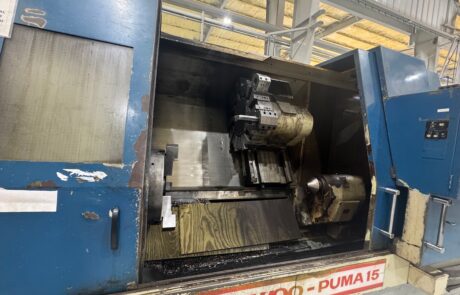

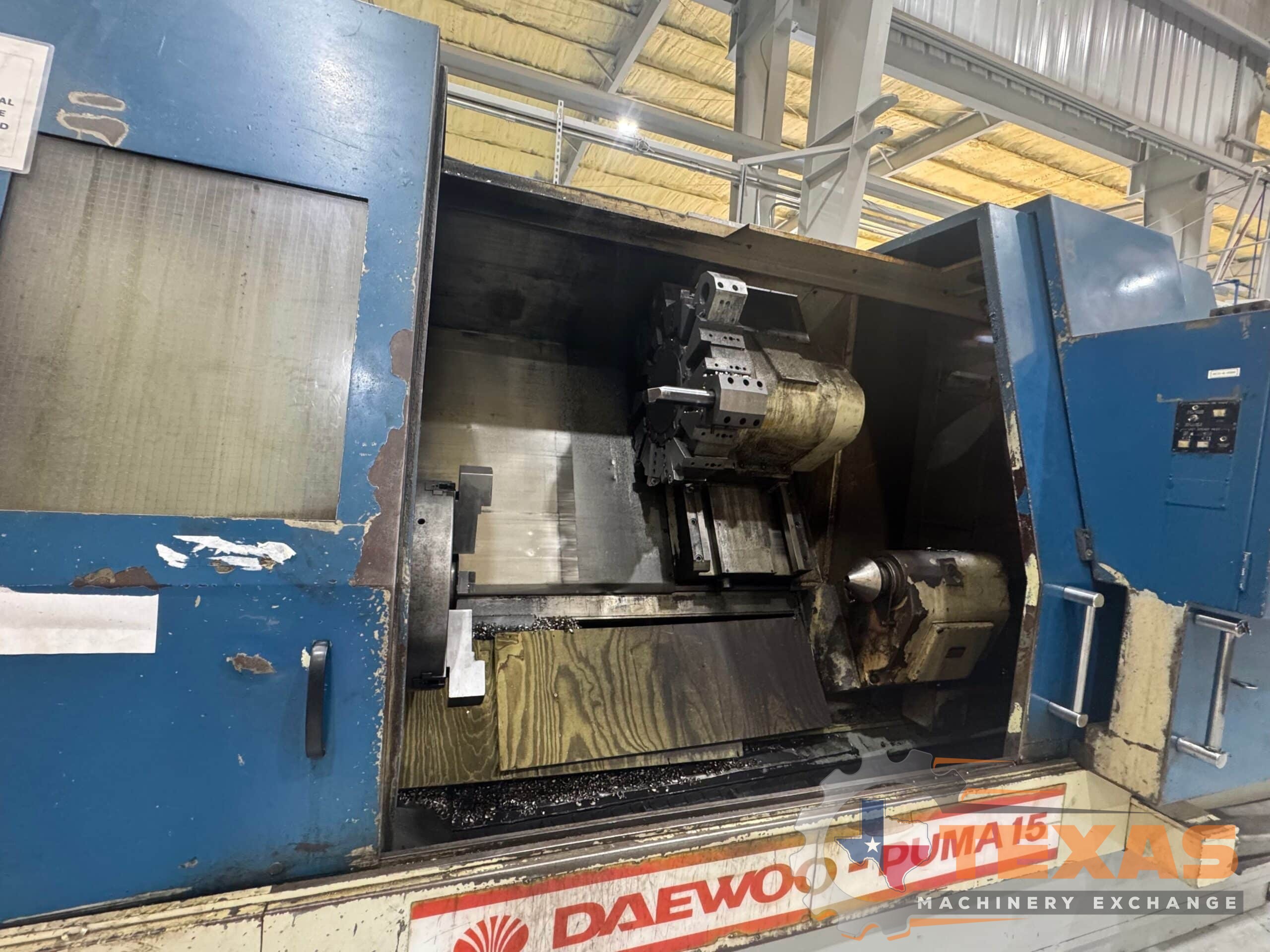

#3210 USED DAEWOO PUMA 15
The Daewoo Puma 15 is a compact CNC turning center with a 17.7″ swing, 9.8″ max cutting diameter, and 20″ cutting length, equipped with a 10-station turret and 20 hp spindle for reliable turning operations.
The Daewoo Puma 15 is a proven slant-bed CNC lathe designed for small to medium-sized part production. With a swing of 17.7″ over bed, a max cutting diameter of 9.8″, and a 20″ max cutting length, it provides an efficient balance between capacity and compact footprint. Its 20 hp spindle motor delivers speeds up to 3,500 rpm, while the 10-station turret supports versatile setups. Equipped with a Fanuc CNC control, hydraulic chuck, and programmable tailstock, the Puma 15 is built for precision, speed, and repeatability in production environments.
| Specification | Value |
|---|---|
| Manufacturer | Daewoo |
| Model | Puma 15 |
| Machine Type | CNC Turning Center |
| Swing Over Bed | 17.7″ |
| Swing Over Cross Slide | 11.8″ |
| Max Cutting Diameter | 9.8″ |
| Max Cutting Length | 20″ |
| Bar Capacity | 2.0″ |
| Chuck Size | 8″ hydraulic |
| Spindle Nose | A2-6 |
| Spindle Speed | Up to 3,500 rpm |
| Spindle Motor | 20 hp |
| Turret Stations | 10 |
| X-Axis Travel | 7.9″ |
| Z-Axis Travel | 20″ |
| Tailstock Quill Diameter / Stroke | 3.9″ / 4.7″ |
| Control | Fanuc CNC |
| Machine Dimensions | ~110″ × 65″ × 65″ |
| Machine Weight | ~11,000 lb |
| Final Listing Price | Request Quote |
Features & Options
- 17.7″ swing with 20″ cutting length capacity
- 20 hp spindle motor, 3,500 rpm
- 8″ hydraulic chuck, 2.0″ bar capacity
- 10-station turret for flexible tooling setups
- Rigid slant-bed construction for accuracy
- Fanuc CNC control for dependable performance
- Hydraulic tailstock with quill feed
- Chip conveyor and coolant system
- Compact footprint for shop versatility
Specifications may vary depending on year and configuration. Always confirm with Daewoo nameplate or factory build sheet.
