The 2006 Weiler E90 × 3m is a precision CNC lathe with 35.4″ swing, 118″ between centers, and a powerful spindle system, engineered for heavy-duty turning applications.
The 2006 Weiler E90 × 3m is a heavy-duty CNC precision lathe built for accurate machining of long and large-diameter workpieces. With 35.4″ swing over bed, 20.9″ swing over cross slide, and 118″ (3,000 mm) distance between centers, it provides exceptional capacity and rigidity. The spindle bore options up to 165 mm, combined with a 50 hp spindle motor and speeds up to 1,120 rpm, allow both power and versatility. Equipped with Fanuc CNC control, tailstock support, and precision ball screws, the E90 series is suited for industries such as oilfield, aerospace, energy, and general heavy engineering.
| Specification | Value |
|---|---|
| Year | 2006 |
| Manufacturer | Weiler |
| Model | E90 × 3m |
| Machine Type | CNC Precision Lathe |
| Swing Over Bed | 35.4″ (900 mm) |
| Swing Over Cross Slide | 20.9″ (530 mm) |
| Distance Between Centers | 118″ (3,000 mm) |
| Cross Slide Travel | 23.2″ (590 mm) |
| Spindle Bore | 165 mm (6.5″) |
| Spindle Nose | A2-11 or DIN-type |
| Spindle Speed Range | Up to 1,120 rpm |
| Spindle Motor | ≈ 50 hp (37 kW) |
| Tailstock Quill Diameter / Travel | ~7.0″ / 10″ |

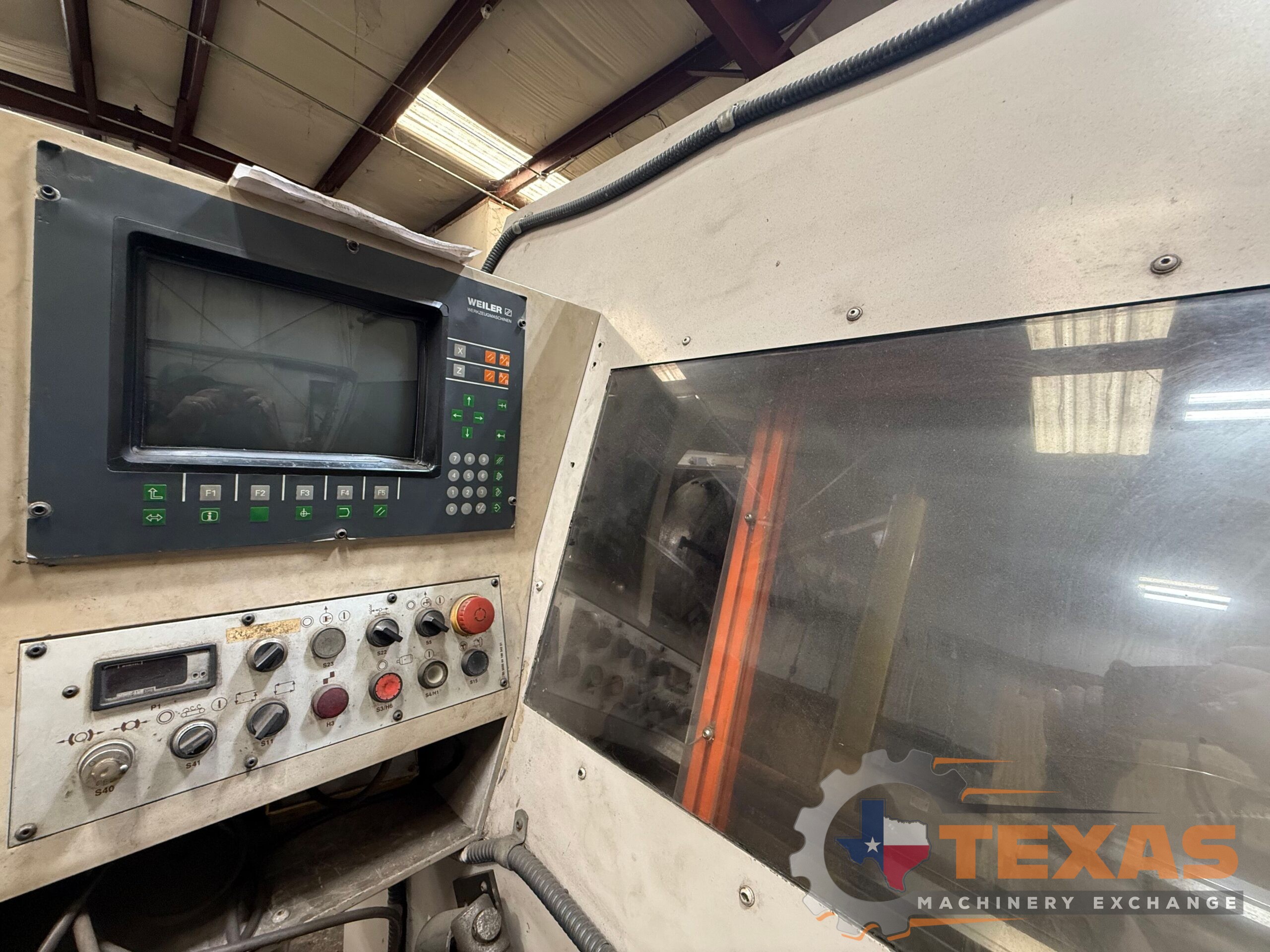

| Control | Fanuc CNC |
| Machine Dimensions | ~260″ × 100″ × 95″ |
| Machine Weight | ~35,000 lb |
| Final Listing Price | Request Quote |
Features & Options
- 118″ distance between centers for long shaft work
- 35.4″ swing over bed and 20.9″ swing over cross slide
- Large spindle bore up to 6.5″ for heavy shaft and pipe turning
- Heavy-duty cast construction designed for rigidity and vibration control
- High-powered 50 hp spindle with maximum speed of 1,120 rpm
- Fanuc CNC control for precision machining and repeatability
- Large tailstock quill travel for support of long workpieces
- Precision ball screws and linear measurement systems
- Integrated coolant and chip management systems
Specifications are based on standard Weiler E90 builds with 3,000 mm center distance. Always confirm with the machine’s nameplate or build documentation.
