#3234 USED 2008 MAZAK QTN 350-2
$65,000.00
The Mazak QTN 350-II is a high-performance CNC turning center featuring a 14″ chuck, 4.0″ bar capacity, and 40 hp spindle drive, built for heavy-duty, high-accuracy machining.
The Mazak Quick Turn Nexus 350-II (QTN 350-II) is a powerful, large-capacity CNC turning center engineered for productivity and accuracy. Built with Mazak’s slant-bed construction and Mazatrol CNC control, it delivers high torque and rigidity for precision turning of large workpieces. The QTN 350-II offers a maximum swing of 27.95″, a machining diameter of 16.14″, and a turning length of 60″ . Its high-output 40 hp spindle motor and 3,300 rpm spindle speed provide strong performance across a wide range of materials.
This model supports bar work up to 4.0″ through the spindle, and features a 12-position turret for fast tool indexing. The Mazatrol CNC control simplifies programming and setup, while optional tailstock, chip conveyor, and tool probe enhance versatility for production environments. Designed for durability and precision, the QTN 350-II is a proven choice for job shops and production lines handling medium-to-heavy workpieces.
| Specification | Value |
|---|---|
| Manufacturer | Mazak |
| Model | Quick Turn Nexus 350-II |
| Machine Type | CNC Turning Center |
| Max Swing | 27.95″ |
| Max Cutting Diameter | 16.14″ |
| Max Cutting Length | 60″ |
| Chuck Size | 14″ |
| Bar Capacity | 4.0″ |
| Spindle Nose | A2-8 |
| Spindle Speed | 3,300 rpm |
| Spindle Motor | 40 hp |
| Turret Stations | 12 |
| X-Axis Travel | 10.43″ |
| Z-Axis Travel | 60.04″ |

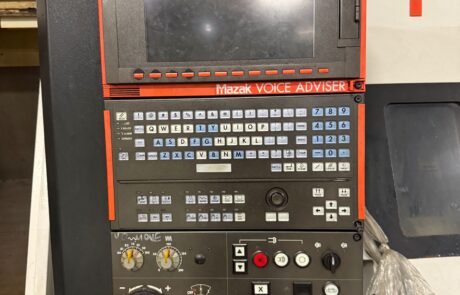

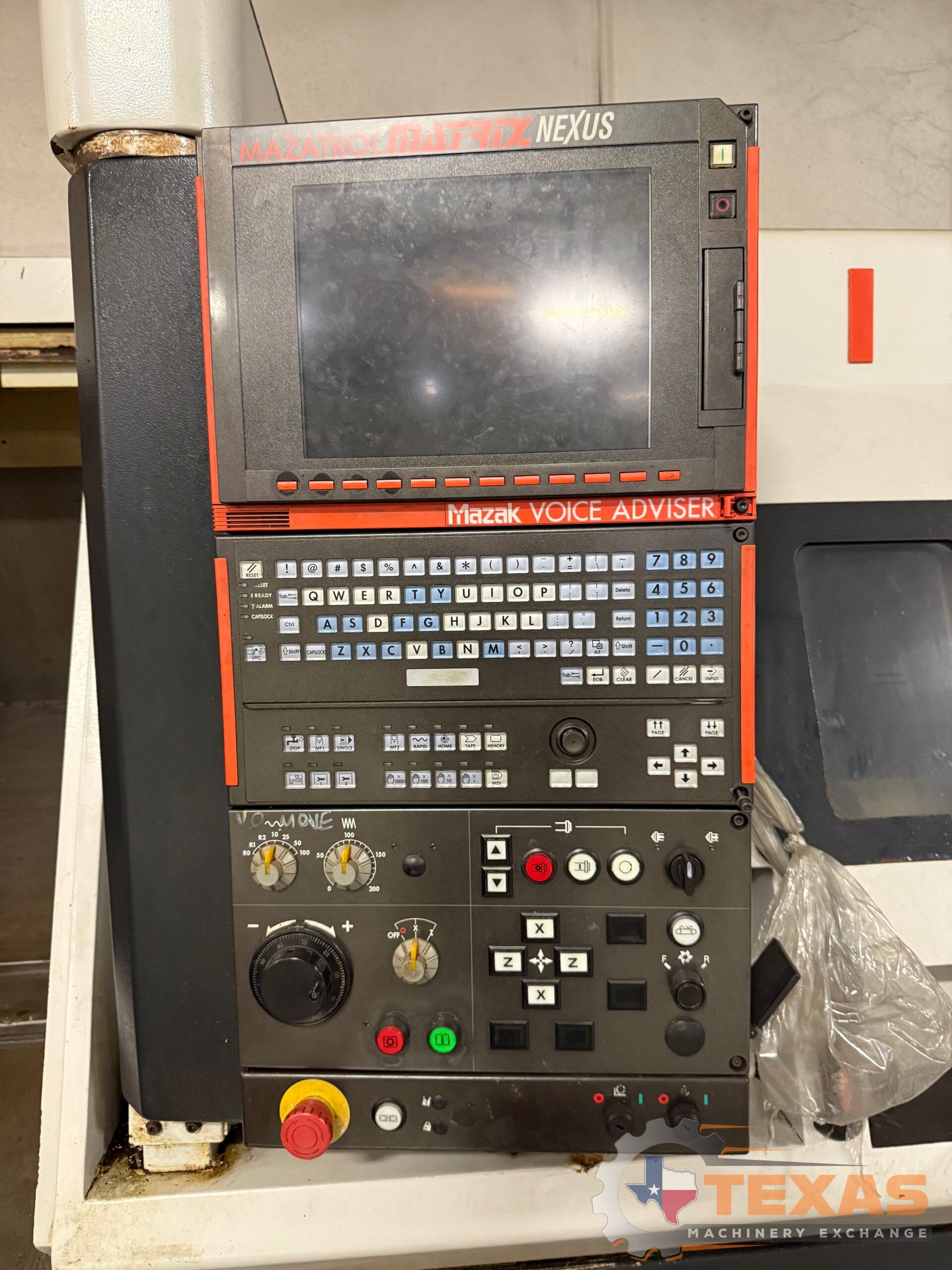

| Control | Mazatrol CNC Control |
| Machine Weight | ~17,500 lb |
| Final Listing Price | Request Quote |
Features & Options
- Heavy-duty slant-bed design for stability and precision
- 14″ hydraulic chuck with 4.0″ bar capacity
- 40 hp spindle motor, 3,300 rpm maximum
- 12-position turret for flexible tooling
- Mazatrol conversational CNC control for easy setup
- Optional programmable tailstock and tool setter
- Chip conveyor and coolant system
- Ideal for large-diameter or long-part production
Specifications may vary by configuration. Always confirm with Mazak nameplate or factory documentation.
