#3235 USED 2006 WEILER E90 X 3M
$100,000.00
The Weiler E90 × 3m is a precision CNC lathe with a 35.4″ swing, 118″ between centers, and a high-power spindle system, built for heavy-duty and high-accuracy turning applications.

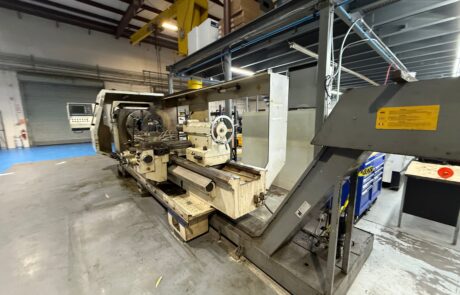

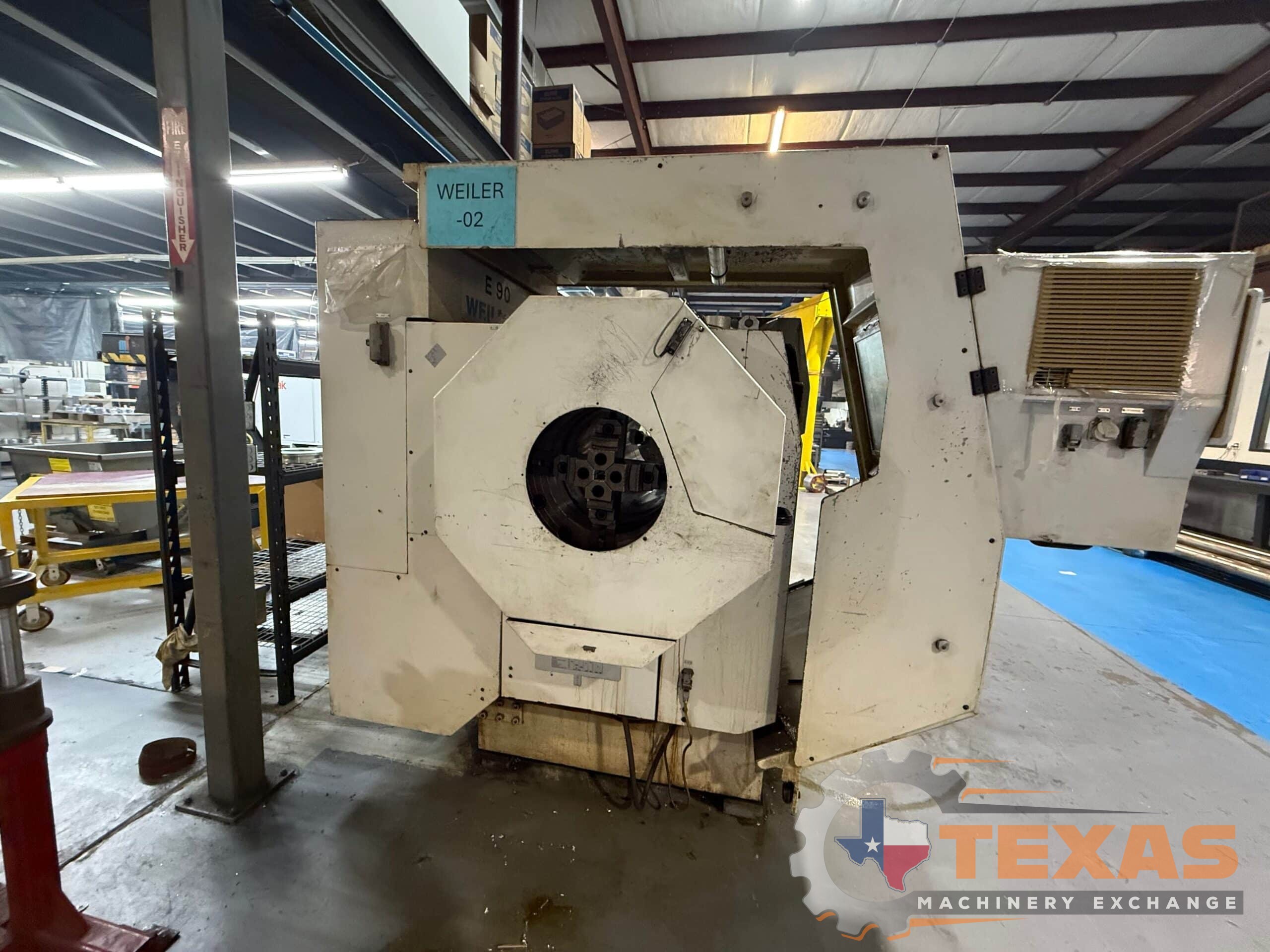

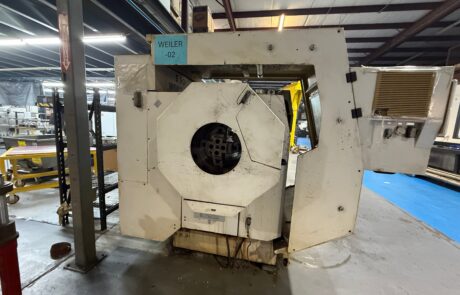

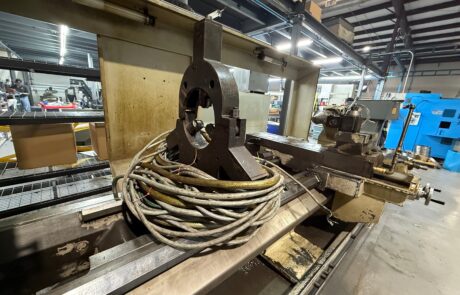

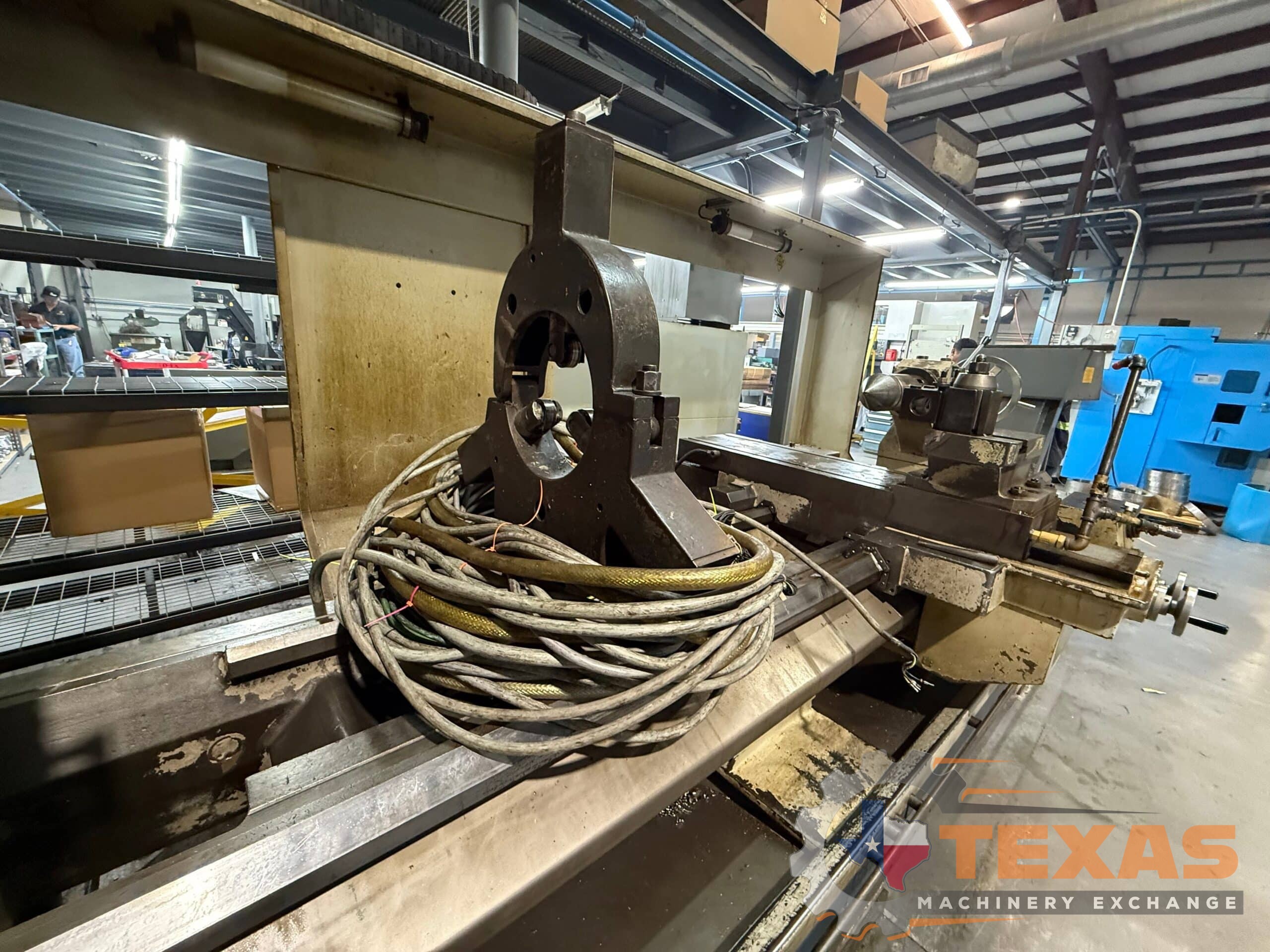

The Weiler E90 × 3m is a large-capacity CNC precision lathe engineered for the accurate machining of long shafts, rolls, and heavy cylindrical parts. With a 35.4″ swing over bed, 20.9″ swing over cross slide, and 118″ (3,000 mm) distance between centers, it provides exceptional rigidity and power for demanding turning operations. The machine’s robust headstock, hardened and ground guideways, and powerful spindle drive ensure smooth performance under load. Equipped with a Fanuc CNC control, tailstock, and precision ball screws, the E90 × 3m delivers repeatable accuracy and versatility across a wide range of applications.
| Specification | Value |
|---|---|
| Manufacturer | Weiler |
| Model | E90 × 3m |
| Machine Type | CNC Precision Lathe |
| Year | 2006 (approx.) |
| Swing Over Bed | 35.4″ (900 mm) |
| Swing Over Cross Slide | 20.9″ (530 mm) |
| Distance Between Centers (Z Travel) | 118″ (3,000 mm) |
| X-Axis Travel | 23.2″ (590 mm) |
| Y-Axis Travel | Not applicable |
| Spindle Bore | 165 mm (6.5″) standard |
| Spindle Nose | A2-11 or DIN type |
| Spindle Speed Range | Up to 1,120 rpm |
| Spindle Motor | ~50 hp (37 kW) |
| Tailstock Quill Diameter / Travel | 7.0″ / 10″ (approx.) |
| Control | Fanuc CNC |
| Machine Dimensions | ~260″ × 100″ × 95″ |
| Machine Weight | ~35,000 lb |
| Final Listing Price | Request Quote |
Features & Options
- 118″ distance between centers for long shaft work
- 35.4″ swing over bed and 20.9″ over cross slide
- Multiple spindle bore options up to 6.5″
- Heavy-duty cast construction for rigidity
- High-powered spindle with 1,120 rpm max
- Fanuc CNC control for precision machining
- Tailstock with large quill travel
- Precision ball screws and linear scales
- Coolant and chip management systems
Specifications are based on standard Weiler E90 builds with 3,000 mm center distance. Always confirm with the machine’s nameplate or factory documentation.
