#3246 USED 2004 DOOSAN PUMA 2000SY
$23,000.00
The Doosan Puma 200SY is a high-precision multi-axis CNC turning center with Y-axis, sub-spindle, and live tooling—engineered for complete machining in a single setup with superior accuracy and productivity.
The Doosan Puma 200SY (also known as the Daewoo Puma 200SY) is a compact, high-performance multi-axis CNC turning center designed for full part machining in a single setup. Featuring a main spindle, sub-spindle, Y-axis capability, and C-axis control, it enables turning, milling, drilling, and back-side operations without manual intervention. This configuration enhances productivity and reduces setup time for complex components.
The machine provides a swing over bed of approximately 23.6″ (600 mm), a maximum cutting diameter of 11.8″ (300 mm), and a cutting length of about 20″ (510 mm). It’s powered by a 25 hp main spindle motor delivering up to 5,000 rpm and a 7.5 hp sub-spindle motor capable of up to 6,000 rpm. The Puma 200SY’s rigid slant-bed construction ensures stability and vibration-free machining for superior part finish and accuracy.
| Specification | Value |
|---|---|
| Manufacturer | Doosan / Daewoo |
| Model | Puma 200SY |
| Machine Type | Multi-Axis CNC Turning Center |
| Swing Over Bed | 23.6″ |
| Max Cutting Diameter | 11.8″ |
| Max Cutting Length | 20″ |
| Chuck Size | 8″ hydraulic |
| Bar Capacity | 2.6″ |
| Main Spindle Speed | 5,000 rpm |
| Sub-Spindle Speed | 6,000 rpm |
| Main Spindle Motor | 25 hp |
| Sub-Spindle Motor | 7.5 hp |
| Spindle Nose | A2-6 |
| Turret Stations | 12 |
| X-Axis Travel | 8.1″ |
| Y-Axis Travel | ±2.0″ |
| Z-Axis Travel | 20.5″ |

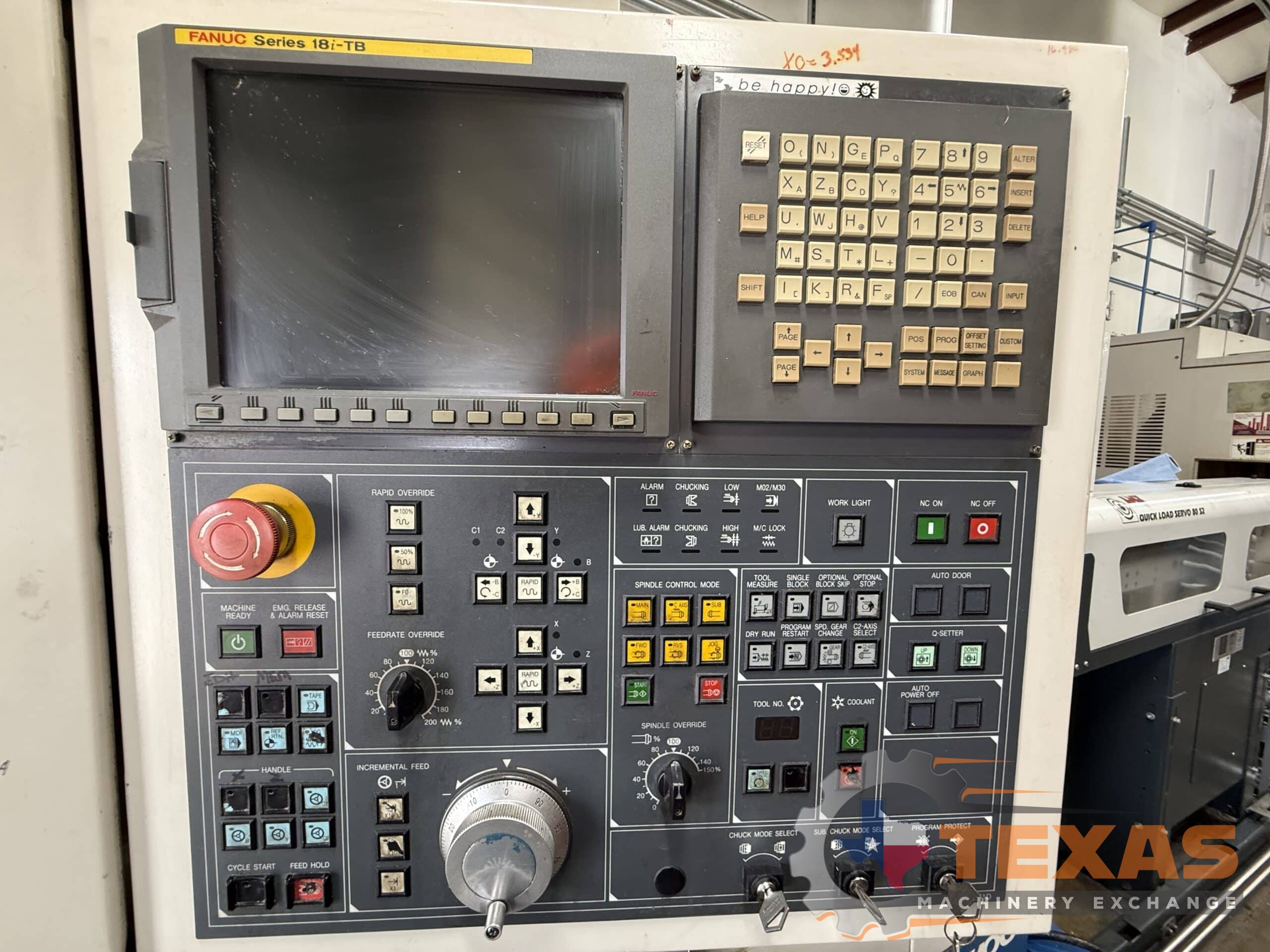

| Control | Fanuc 18i-TB / 21i-TB CNC |
| Machine Weight | ~12,000 lb |
| Final Listing Price | Request Quote |
Features & Options
- Main and sub-spindle configuration for complete part machining
- Y-axis and C-axis for off-center milling and drilling
- 12-station live tooling turret
- High-torque 25 hp main spindle motor
- Sub-spindle for secondary operations and back working
- Rigid slant-bed construction for accuracy and durability
- Fanuc CNC control for efficient operation
- Automatic lubrication, coolant, and chip conveyor
- Compact footprint ideal for production shops
Specifications may vary depending on configuration and year. Always verify with Doosan/Daewoo factory documentation or machine nameplate.
