#3247 USED 2004 DOOSAN PUMA TT2000SY
$20,000.00
The Doosan Puma TT S2000Y is a twin-turret, twin-spindle CNC turning center with Y-axis and live tooling, designed for high-speed, complete machining of complex parts in a single setup.
The Doosan Puma TT S2000Y (also known as the Daewoo Puma TT S2000Y) is an advanced multi-axis CNC turning center engineered for high-productivity machining of complex components. Featuring twin spindles, twin turrets, and Y-axis capability, it allows simultaneous machining on both spindles, dramatically reducing cycle times and part handling. Each turret includes live tooling and full C-axis interpolation for milling, drilling, and contouring operations.
With a swing over bed of 23.6″ (600 mm), a maximum turning diameter of 8.3″ (210 mm), and a maximum turning length of 13″ (330 mm), the Puma TT S2000Y is ideal for automotive, aerospace, and medical parts requiring precision multi-operation machining. Both spindles deliver up to 6,000 rpm, powered by 20 hp vector drives. A Fanuc 31i-TB CNC control synchronizes both machining sides for simultaneous cutting or mirrored operations, ensuring fast and accurate production.
| Specification | Value |
|---|---|
| Manufacturer | Doosan / Daewoo |
| Model | Puma TT S2000Y |
| Machine Type | Twin-Turret, Twin-Spindle CNC Turning Center |
| Swing Over Bed | 23.6″ (600 mm) |
| Max Turning Diameter | 8.3″ (210 mm) |
| Max Turning Length | 13″ (330 mm) |
| Chuck Size | 6″ hydraulic (each spindle) |
| Bar Capacity | 2.0″ (51 mm) |
| Main Spindle Speed | 6,000 rpm |
| Sub-Spindle Speed | 6,000 rpm |
| Main Spindle Motor | 20 hp (15 kW) |
| Sub-Spindle Motor | 20 hp (15 kW) |
| Spindle Nose | A2-5 |
| Turrets | 2 |
| Turret Stations | 12 |
| X-Axis Travel | 6.3″ |
| Y-Axis Travel | ±2.0″ |
| Z-Axis Travel | 13″ |

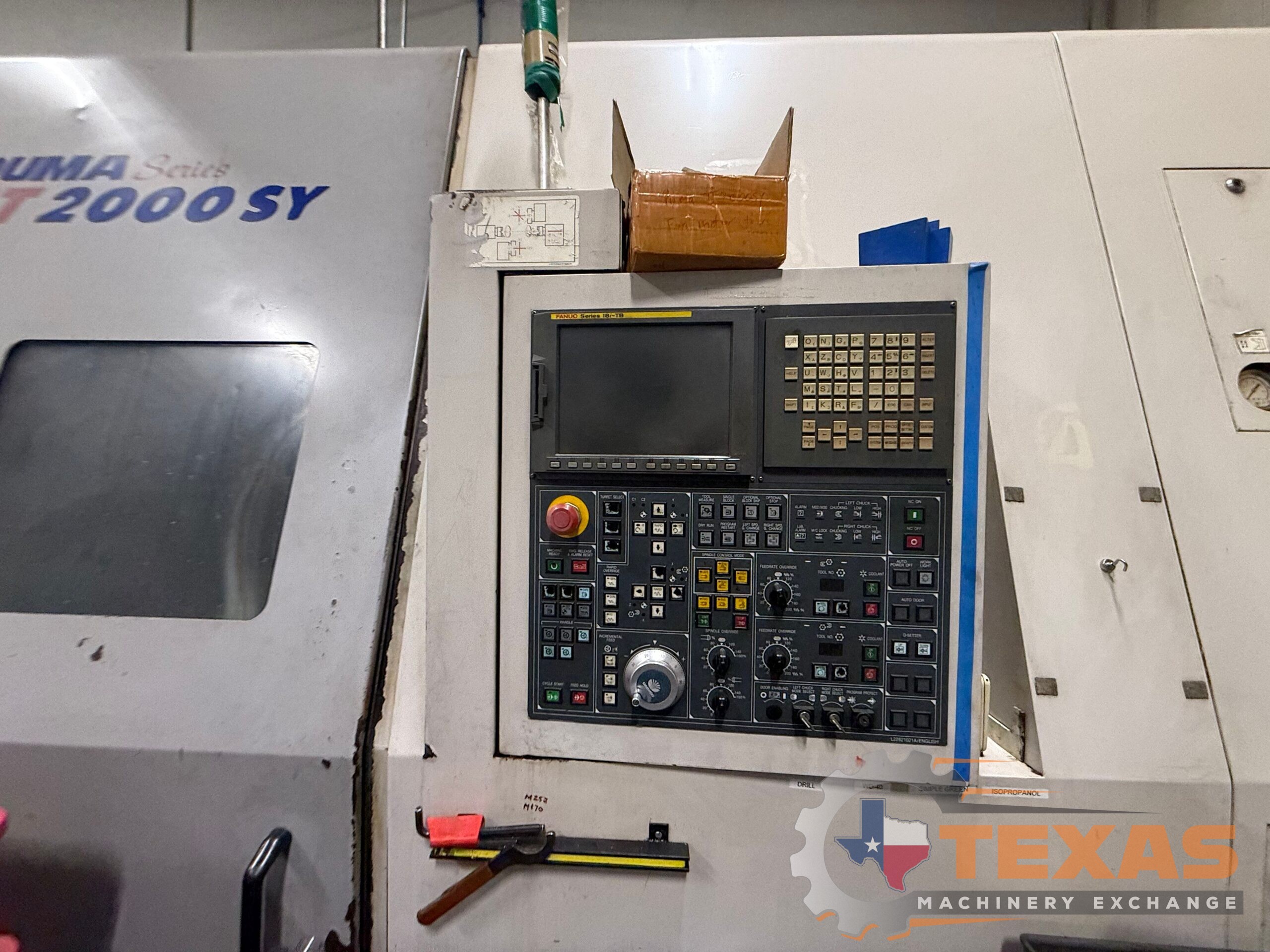

| Control | Fanuc 31i-TB CNC |
| Machine Weight | ~15,000 lb |
| Final Listing Price | Request Quote |
Features & Options
- Twin-turret, twin-spindle configuration for simultaneous machining
- Y-axis and C-axis for off-center milling and contouring
- 12 live tooling stations per turret
- 6,000 rpm spindles powered by 20 hp drives
- Automatic part transfer between spindles
- Fanuc 31i-TB CNC with synchronization control
- Rigid slant-bed structure for precision and durability
- Automatic lubrication, coolant, and chip management systems
- Ideal for complex, high-volume production work
Specifications may vary depending on configuration and year. Always verify with Doosan/Daewoo factory documentation or machine nameplate.
