#3255 USED 2007 SUN FIRM MAXTEC LATHE
$85,000.00
The Sunfirm Maxtec lathe is a heavy-duty “big-bore” CNC turning center featuring up to a 42″ swing, approx. 160″ between centers, and designed for large component machining in oilfield and heavy-duty markets.
The Sunfirm Maxtec series lathe is engineered for large-diameter and long-length turning applications, especially in oilfield, heavy equipment and large component manufacturing. For example, the CST-42160 version offers a 42″ swing over bed, a 55″ swing over gap, and a machining length of 160″. Its massive structure, wide bed and strong spindle make it ideal for heavy cuts, long shafts, and large diameter workpieces.
The machine is typically equipped with a spindle bore of 7″ , a swing over bed of 42″, and X/Z travel that support high rapid traverse rates. The spindle nose is A2-20 in the example listing. With CNC control, an 8-station turret and optional hydraulic tailstock, the machine offers a combination of size, automation, and rigidity.
| Specification | Value |
|---|---|
| Manufacturer | Sunfirm Maxtec |
| Model | Maxtec |
| Machine Type | CNC Turning Center – Big Bore |
| Swing Over Bed | 42″ |
| Swing Over Gap | 55″ |
| Distance Between Centers (Z Travel) | 160″ |
| Spindle Bore | 7″ |
| Spindle Nose | A2-20 |
| X-Axis Travel | 26.3″ |
| Z-Axis Travel | 170.3″ |

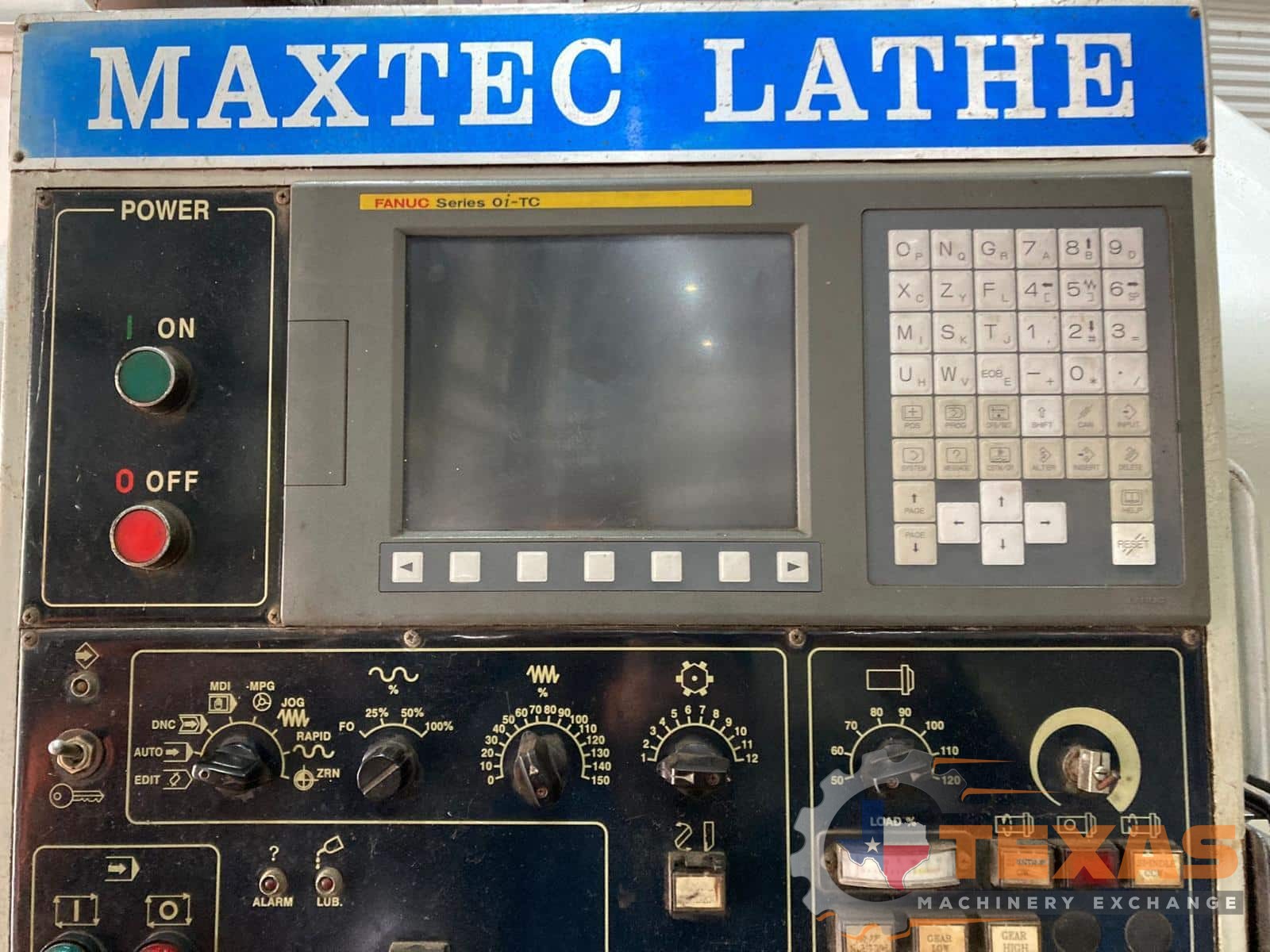

| Control | Fanuc 0i-TC |
| Machine Weight | ~35,500 lb (≈16,100 kg) |
| Final Listing Price | Request Quote |
Features & Options
- Massive 42″ swing with 160″ center-distance capability for long shafts and large diameters
- 7″ spindle bore with A2-20 spindle nose for large bar or through-spindle work
- High rapid traverse rate for faster machining times
- CNC controlfor automated turning and production setups

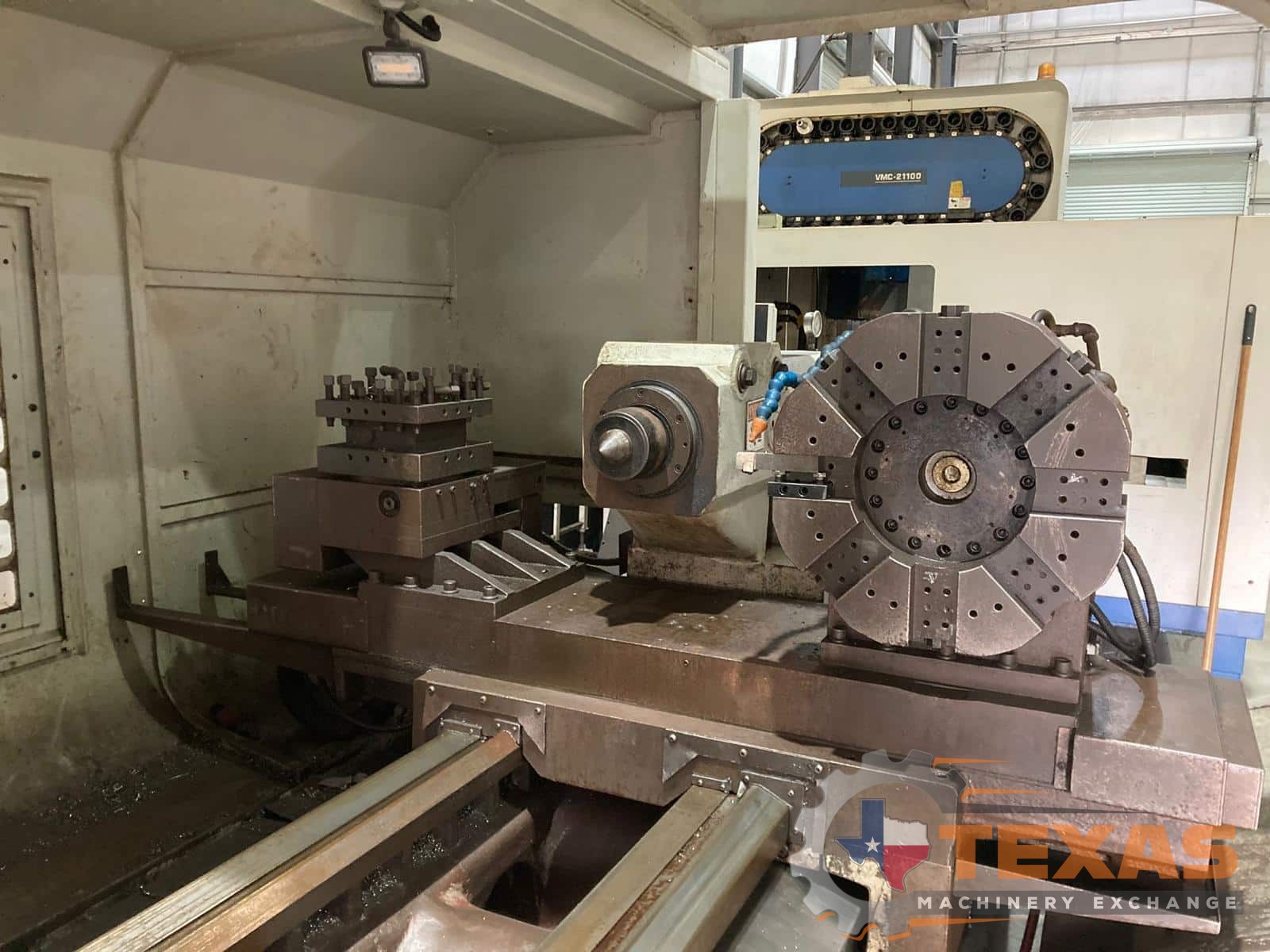

- 8-station turret, chip conveyor, hydraulic tailstock, steady rests optional in listings
- Heavy cast-iron bed & gap design capable of heavy cutting loads and large workpieces
Specifications may vary by configuration, options, and model year. Always verify with machine nameplate or factory documentation.
