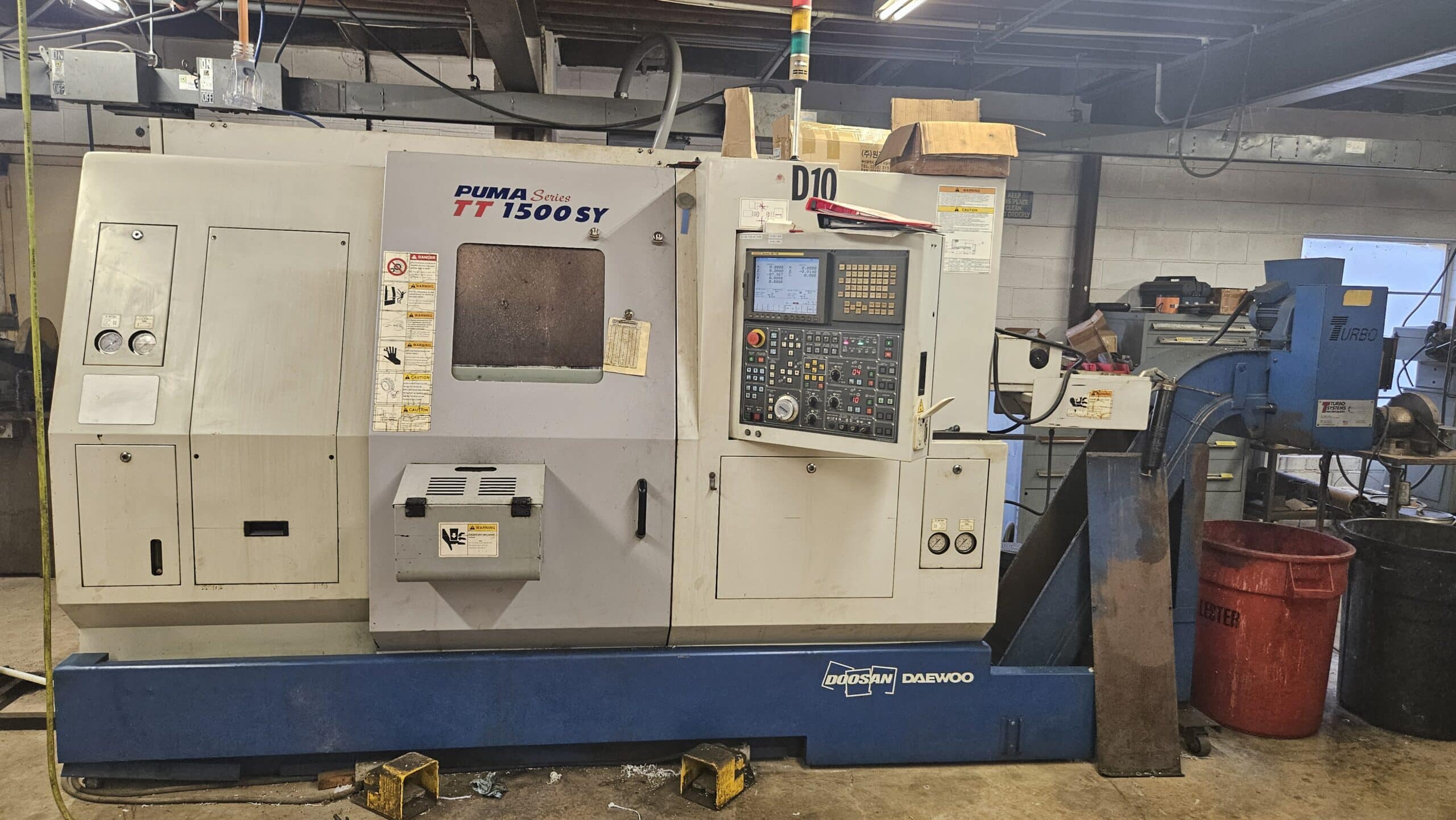

#3273 2006 DAEWOO PUMA TT1500SY
The 2006 Daewoo/Doosan Puma TT1500SY is a 6-axis twin-spindle, twin-turret CNC turning center with Y-axis and live tooling, dual 6″ chucks, and 6,000 rpm spindles—built for high-speed, complete machining in a single setup.

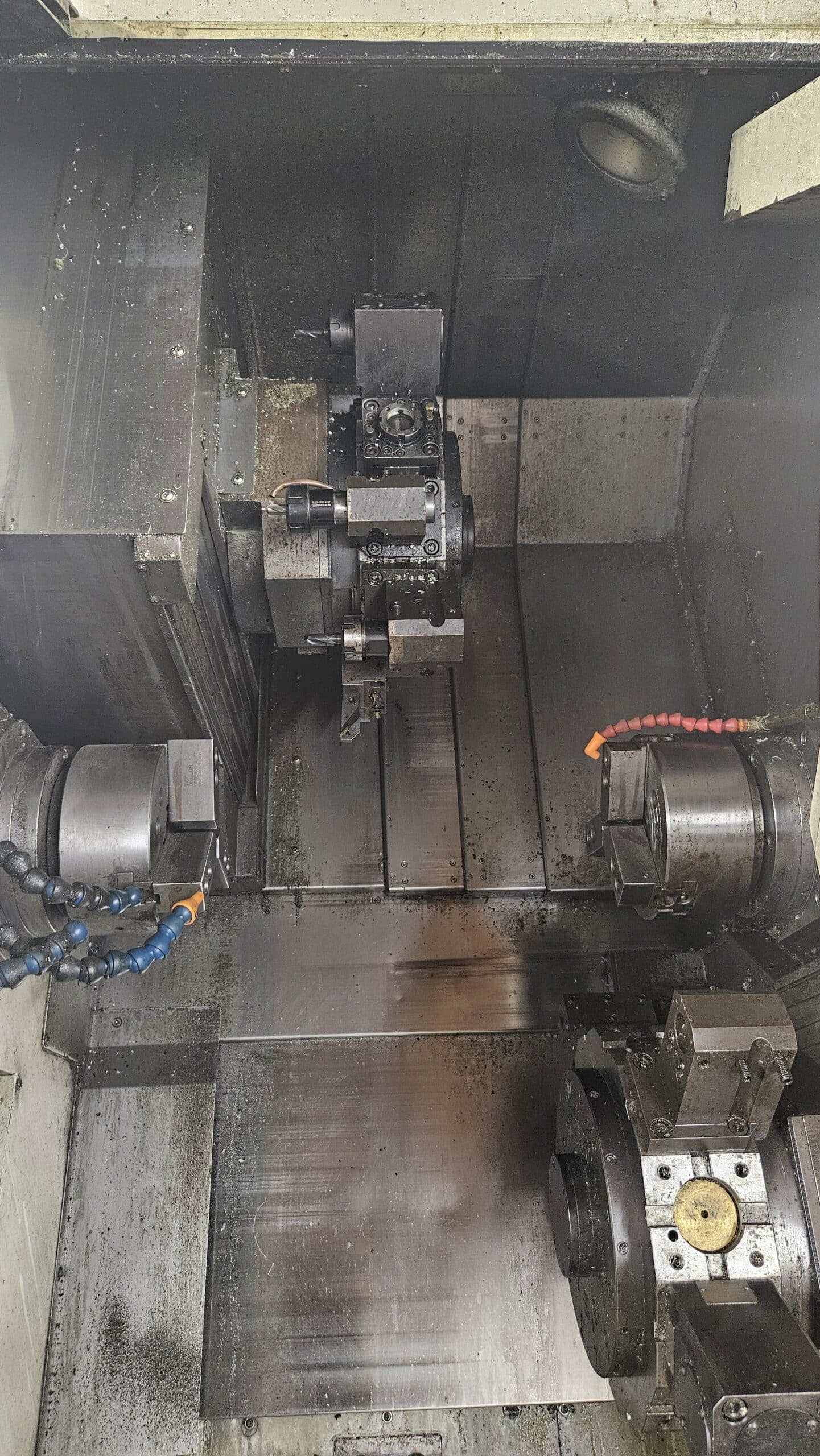

The 2006 Daewoo/Doosan Puma TT1500SY is a compact, high-productivity 6-axis CNC turning center designed for complex parts and full machining in one setup. With twin opposed spindles, upper and lower live-tool turrets, Y-axis on the upper turret, and full C-axis on both spindles, it can turn, mill, drill, and perform back-side operations without secondary setups. Dual 6″ chucks, 2.0″ bar capacity, and a max turning diameter around 9″ make it ideal for automotive, aerospace, and precision job shop production.
Heavy slant-bed construction, high-speed 6,000 rpm spindles, and Fanuc 18i-T CNC control provide accuracy, rigidity, and reliability. The Puma TT1500SY’s 24 total turret stations (12 upper + 12 lower) with live tooling capability allow dense tooling layouts and minimized changeover time. This platform is built for lights-out, multi-op production where cycle time and part consistency are critical.
| Specification | Value |
|---|---|
| Year | 2006 |
| Manufacturer | Daewoo / Doosan |
| Model | Puma TT1500SY |
| Machine Type | Twin-Spindle, Twin-Turret Multi-Axis CNC Turning Center |
| Axis Count | 6-Axis (X1, Z1, X2, Z2, Y, C) |
| Chuck Size (Main) | 6″ hydraulic |
| Chuck Size (Sub) | 6″ hydraulic |
| Control System | Fanuc 18i-T CNC |
| Spindle Speed (Main/Sub) | 60 – 6,000 rpm |
| Spindle Taper / Nose | A2-5 spindle nose |
| Spindle Bore | 2.0″ main, 1.77″ sub |
| Bar Capacity | 2.0″ |
| Spindle Motor | 20 hp main / 20 hp sub |
| Max Turning Diameter | 9.05″ |
| Max Turning Length | 20.1″ |
| Swing Over Bed | 23.62″ |
| Distance Between Spindles | ≈ 29.6″ |
| X-Axis Travel (Upper Turret X1) | 6.5″ |
| X-Axis Travel (Lower Turret X2) | 7.48″ |
| Y-Axis Travel | 4.0″ (±2.0″) |
| Z-Axis Travel (Z1) | 18.5″ |
| Z-Axis Travel (Z2) | 19.29″ |
| C-Axis Travel | 360° |
| Tool Capacity | 24 total |
| Product Work Envelope | Turning dia. up to 9.05″ × turning length 20.1″; dual-spindle transfer |
| Rapid Traverse (X / Z / Y) | 787 / 945 / 295 ipm |
| Machine Weight | ≈ 11,500 lb |
| Final Listing Price | Request Quote |
Features & Options
- Twin 6″ spindles with 2.0″ bar capacity for complete front/back machining
- Upper and lower 12-station turrets (24 total stations) with live tooling
- Y-axis on upper turret and full C-axis on both spindles for milling and contouring
- 6,000 rpm main and sub-spindles with 20 hp drives
- Rigid slant-bed construction for accuracy and stability
- Fanuc 18i-T CNC control with multi-axis synchronization
- Ideal for complex, high-volume production parts
- Typically equipped with bar feeder, parts catcher, parts conveyor, and chip conveyor
Specifications may vary depending on exact build and options. Always verify details with the machine nameplate or OEM documentation.
