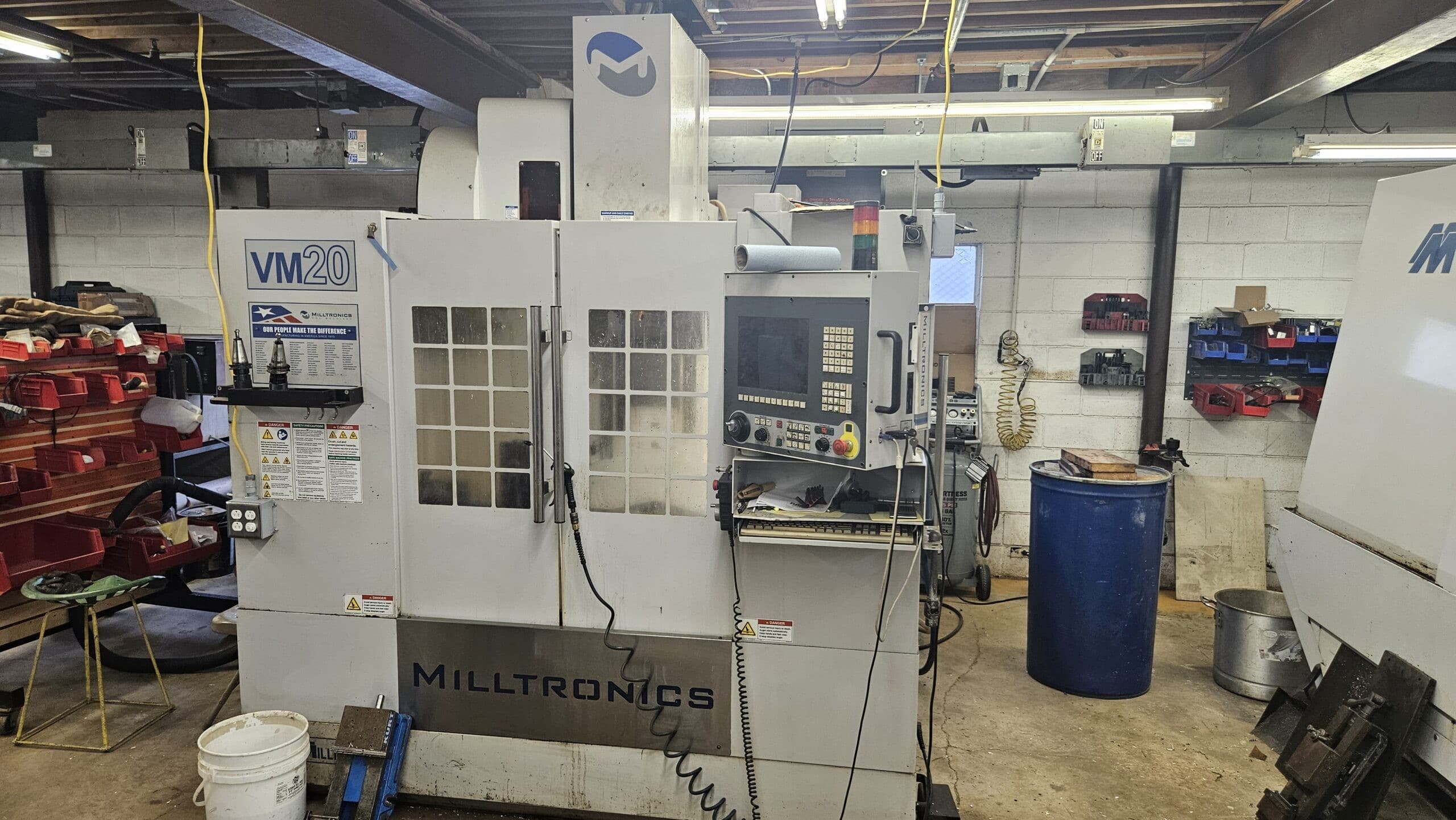

#3275 2010 MILLTRONICS VM20
The 2010 Milltronics VM20 is a 3-axis CNC vertical machining center with a 24-station tool changer, ISO-40 spindle up to 8,000 rpm, and travels of 40″ X × 20″ Y × 26″ Z—ideal for medium size tooling and production milling applications.
The Milltronics VM20 is a robust 3-axis CNC vertical machining center designed for shops requiring a 40″ × 20″ work envelope and high flexibility. Equipped with an ISO-40 taper spindle capable of up to 8,000 rpm, a 24-station automatic tool changer, and a rigid cast-iron frame with full enclosure, this machine offers precision and production capability. The CNC control system is the Milltronics 8200 series and supports standard G-code programming with advanced features.
The VM20 provides a 40″ (1,016 mm) X-axis travel, 20″ (508 mm) Y-axis travel and 26″ (660 mm) Z-axis travel, with a 34″ × 20″ table size and approximately 2,000 lb (≈ 900 kg) table load capacity. The machine typically includes rapid traverse rates up to 1,000 ipm and a spindle motor rated at 24 hp (17.9 kW). With its combination of size, speed and flexibility, the VM20 is suitable for tooling, prototype work, and moderate volume production.
| Specification | Value |
|---|---|
| Year | 2010 |
| Manufacturer | Milltronics |
| Model | VM20 |
| Axis Count | 3-Axis (X, Y, Z) |
| Chuck / Spindle Nose | ISO-40 / CAT-40 |
| Spindle Speed | Up to 8,000 rpm |
| Spindle Motor | 24 hp |
| Table Size | 34″ × 20″ |
| X-Axis Travel | 40″ |
| Y-Axis Travel | 20″ |
| Z-Axis Travel | 26″ |
| Tool Capacity | 24-station automatic tool changer |

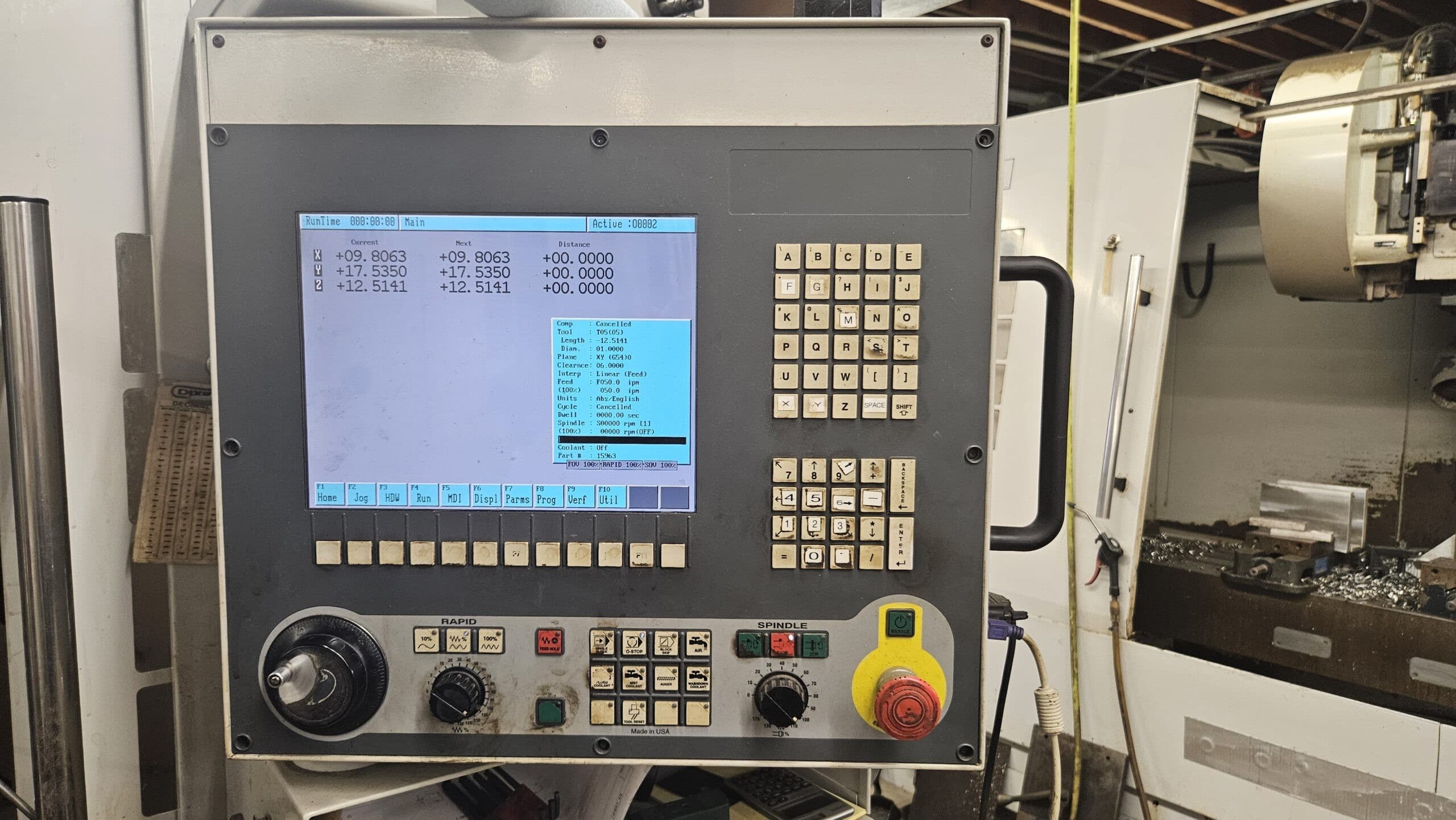

| Control System | Milltronics 8200 Series / Centurion 7 CNC |
| Machine Weight | ~10,000 lb (4,540 kg) |
| Final Listing Price | Request Quote |
Features & Options
- 40″ × 20″ × 26″ travels for medium-sized workpieces
- ISO-40 (CAT-40) spindle taper rated up to 8,000 rpm
- 24-station automatic tool changer for multiple tooling setups
- High rapid traverse (up to ~1,000 ipm) for reduced cycle time
- Full enclosure and chip conveyor for clean and safe operation
- Rigid cast-iron structure for accurate and stable machining
- CNC control with advanced programming and memory capabilities
Specifications are typical for the Milltronics VM20. Actual configuration may vary depending on year, build, and options. Always verify with the machine’s nameplate or factory documentation.
TERMS & CONDITIONS
AS-IS SALE: All equipment is sold strictly “AS IS, WHERE IS”, with all faults, and without any warranty or guarantee, express or implied. Buyer assumes full responsibility for inspection, testing, and acceptance of the equipment prior to purchase.
DISCLAIMER OF WARRANTIES: Texas Machinery Exchange expressly disclaims, to the fullest extent permitted by law, all warranties, whether express or implied, including but not limited to any warranty of merchantability, fitness for a particular purpose, performance, durability, condition, or suitability of the equipment, its components, or accessories.
NO RETURNS / NO REFUNDS: All sales are final. No returns, refunds, exchanges, or credits will be accepted under any circumstances. Buyer waives any right to revoke acceptance of the equipment once purchased.
LIMITATION OF LIABILITY: In no event shall Texas Machinery Exchange be liable for any direct, indirect, incidental, consequential, special, or punitive damages, including but not limited to loss of profits, downtime, or damage to other property, arising out of or relating to the sale, use, or operation of the equipment.
SPECIFICATIONS: All specifications are believed to be accurate but must be verified by Buyer prior to purchase.
ENTIRE AGREEMENT: This document constitutes the entire agreement between the parties and supersedes all prior negotiations, representations, or agreements, whether written or oral. No modification shall be valid unless in writing and signed by both parties.
ERRORS: Texas Machinery Exchange reserves the right to correct clerical or typographical errors.
GOVERNING LAW & VENUE: This Agreement shall be governed by and construed in accordance with the laws of the State of Texas. Buyer agrees that any dispute, claim, or cause of action arising out of or relating to this Agreement or the equipment shall be brought exclusively in the state or federal courts located in Montgomery County, Texas, and Buyer hereby submits to the personal jurisdiction of such courts.
