#3277 WARNER & SWASEY NO.3
The Warner & Swasey No. 3 M-2200 is a heavy-duty ram-type turret lathe with about 15-3/8″ swing, 8″ 3-jaw chuck, 2″ spindle bore, and 6-station turret—ideal for production turning, facing, and threading of shaft and bar work.

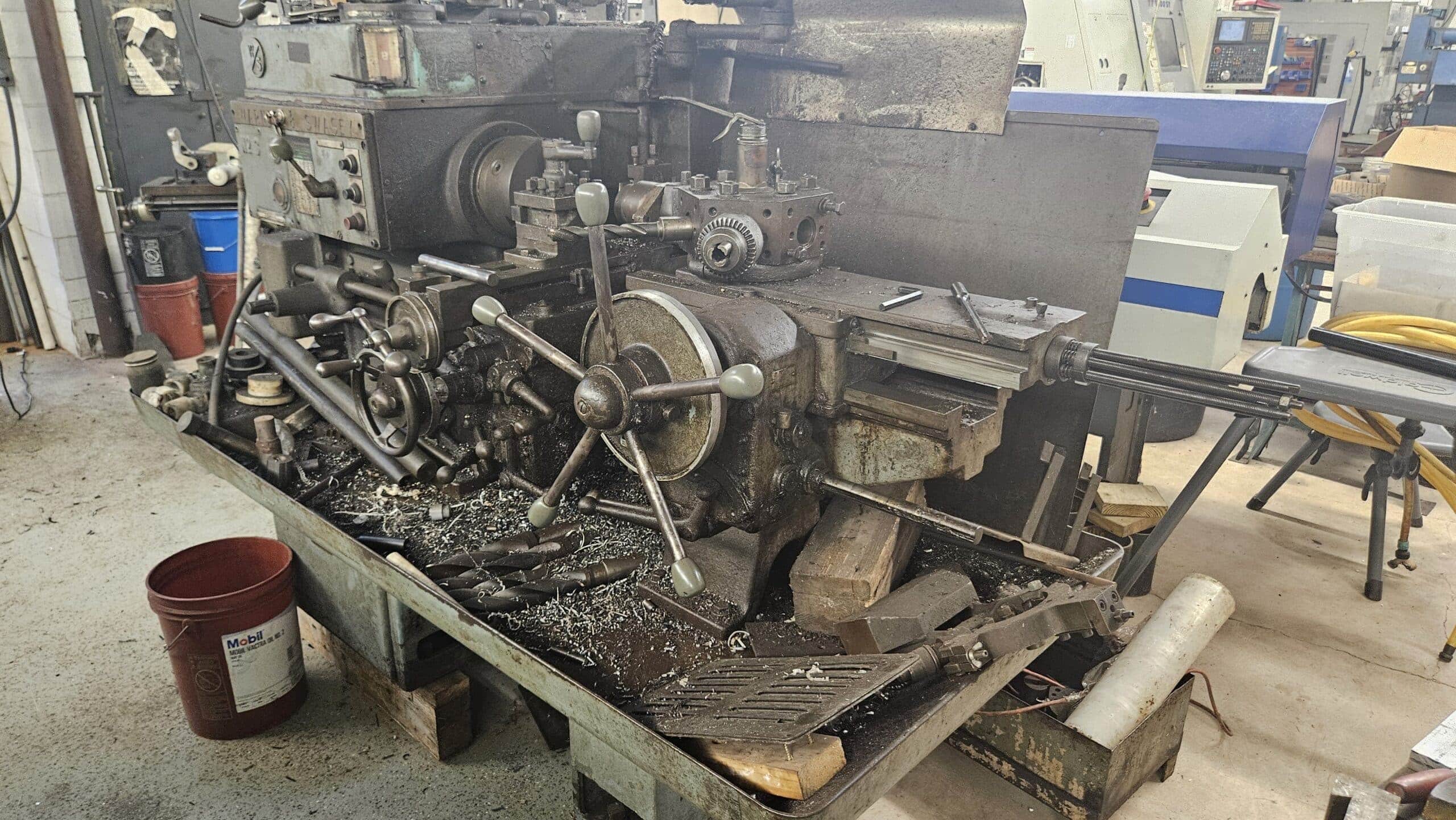

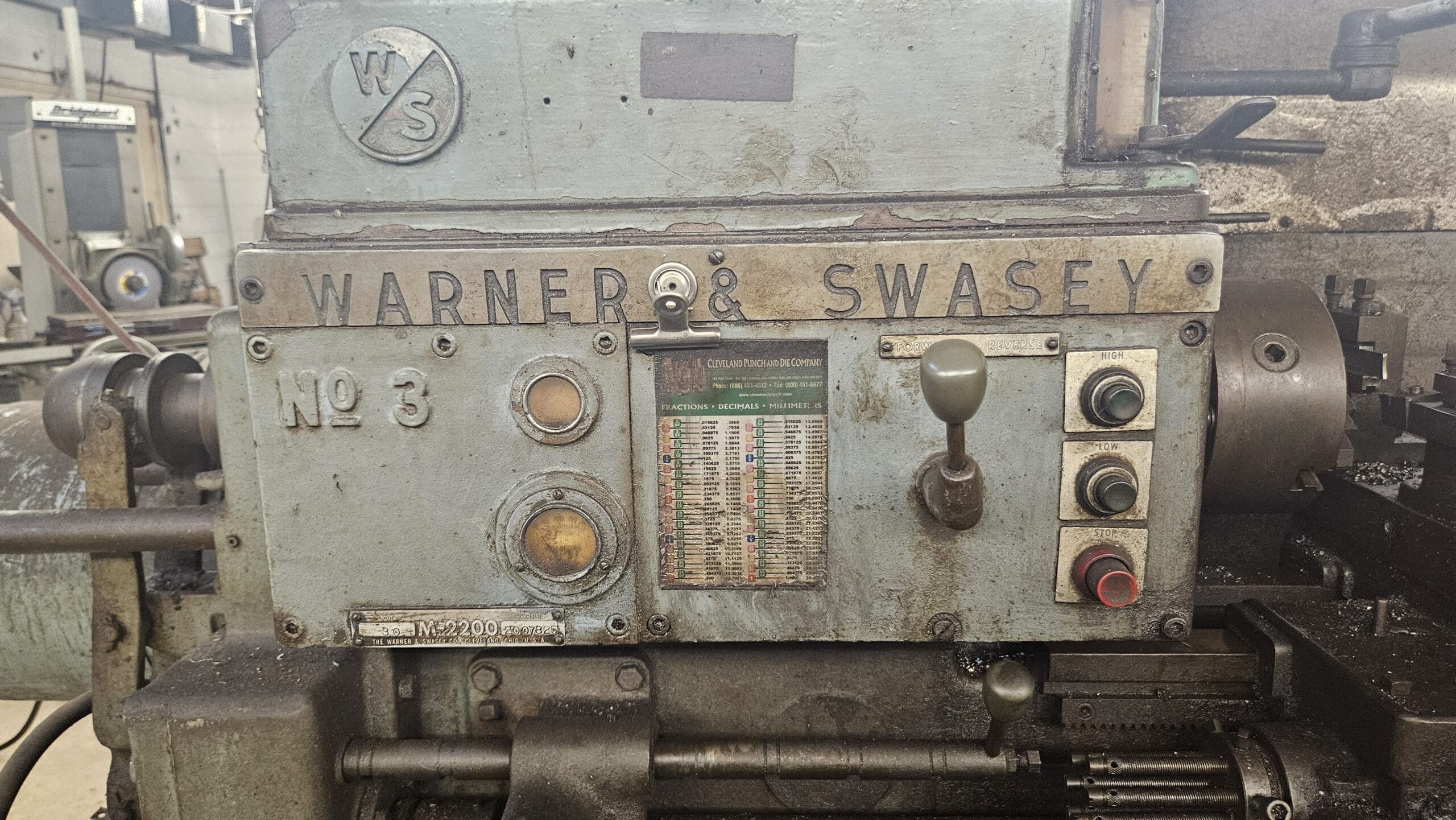

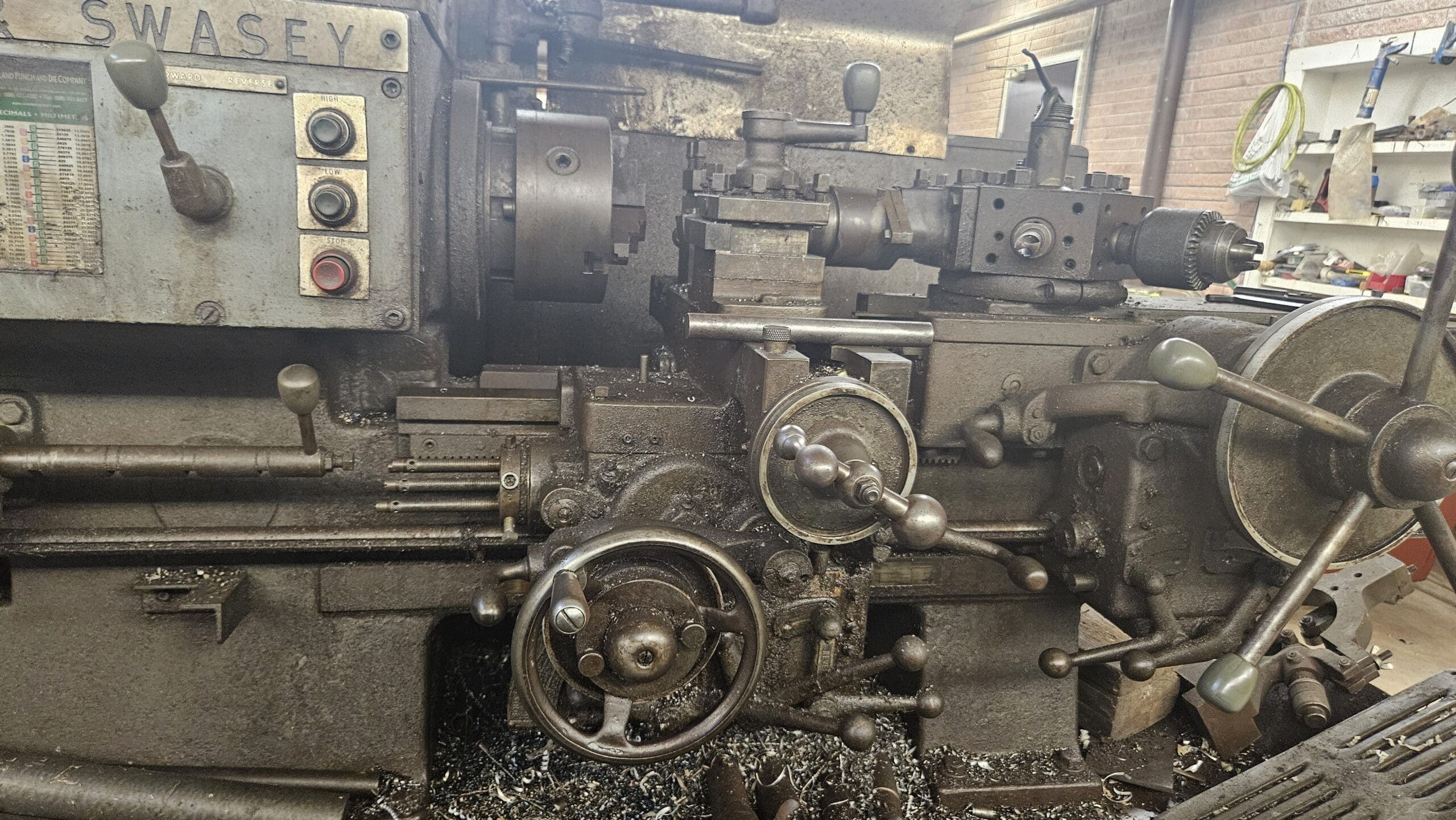

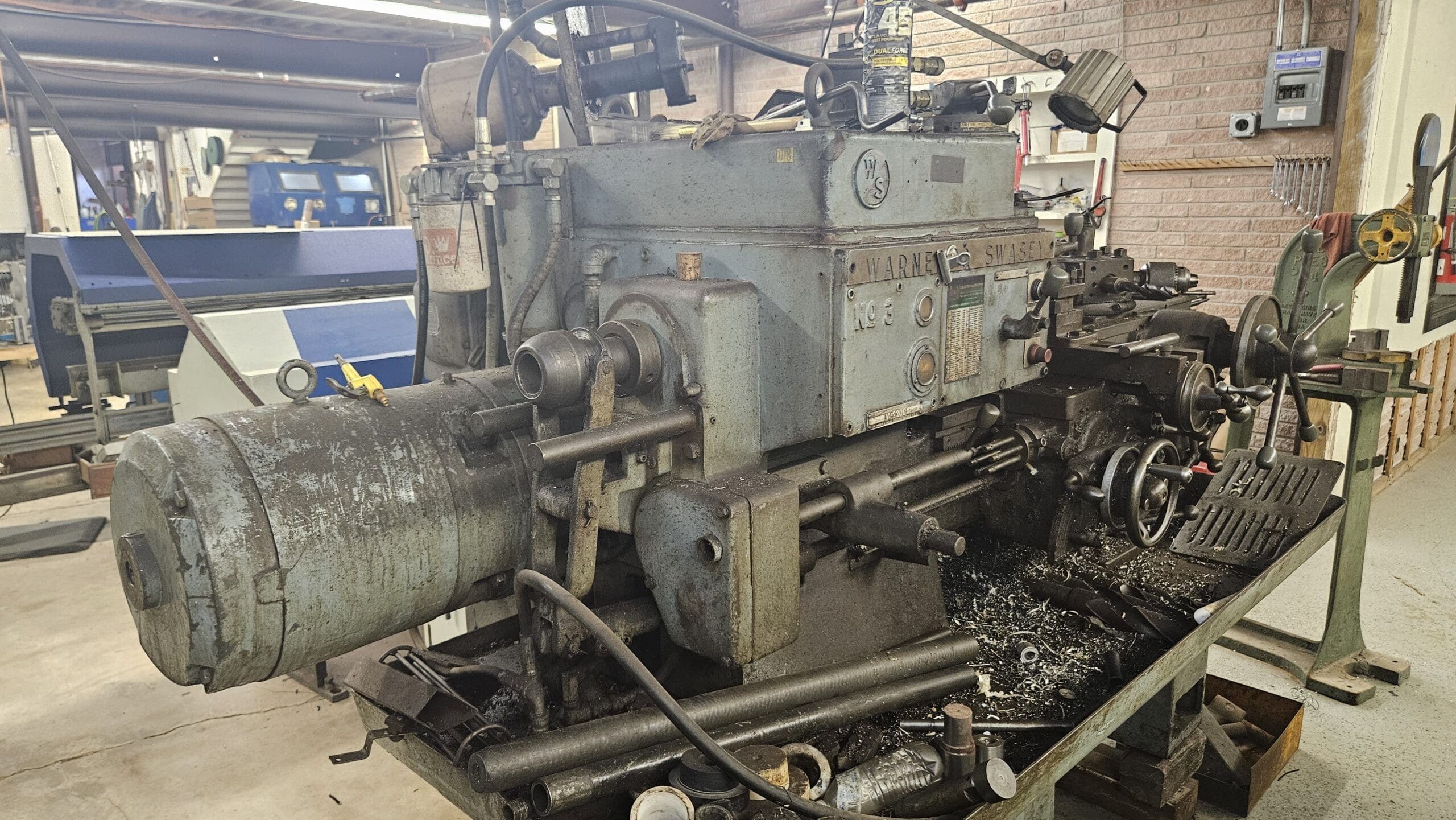

The Warner & Swasey No. 3 M-2200 is a classic American ram-type turret lathe built for high-production turning and cutoff work. With approximately 15-3/8″ swing over the bed and 7″ swing over the cross slide, this square-head No. 3 model is designed to handle medium-diameter shafts, bushings, and bar work with excellent rigidity. Its 2″ spindle bore and 8″ 3-jaw chuck make it well suited for both chucking and bar-fed operations.
This M-2200 version features a 6-sided turret, geared headstock with speeds from about 45 to 2,262 rpm, and a 5/10 hp two-speed main motor (typical listing). It’s a proven workhorse for production environments where repeat setups, simple tooling layouts, and mechanical reliability are more important than CNC capability.
| Specification | Value |
|---|---|
| Manufacturer | Warner & Swasey |
| Model | No. 3 M-2200 |
| Machine Type | Ram-Type Turret Lathe |
| Axis Count | 2-Axis manual |
| Swing Over Bed | 15-3/8″ |
| Swing Over Cross Slide | 7″ |
| Spindle to Turret Face (Max) | 26-7/8″ |
| Chuck Size | 8″ 3-jaw chuck |
| Round Bar Capacity | 1-1/2″ through turret; 2″ spindle bore |
| Control System | Manual, geared headstock with mechanical feeds |
| Spindle Speed Range | 45 – 2,262 rpm |
| Spindle Bore | 2.0″ |
| Spindle Nose / Taper | Warner & Swasey collet/chuck nose |
| Main Motor | 2-speed 5 / 10 hp |
| Tool Capacity | 6-station ram turret |
| X-Axis Travel (Cross) | Not specified |
| Y-Axis Travel | Not applicable |
| Z-Axis Travel (Longitudinal) | ≈ 26-7/8″ from spindle nose to turret face |
| Product Work Envelope | Approx. 15-3/8″ swing × 26-7/8″ working length |
| Electricals | Typical 440V / 3-phase / 60 Hz |
| Approx. Dimensions | ~100″ L × 54″ W |
| Approx. Machine Weight | ~4,000 lb |
| Final Listing Price | Request Quote |
Features & Options
- No. 3 square-head ram-type turret lathe for production turning
- 6-station turret with through capacity for bar work

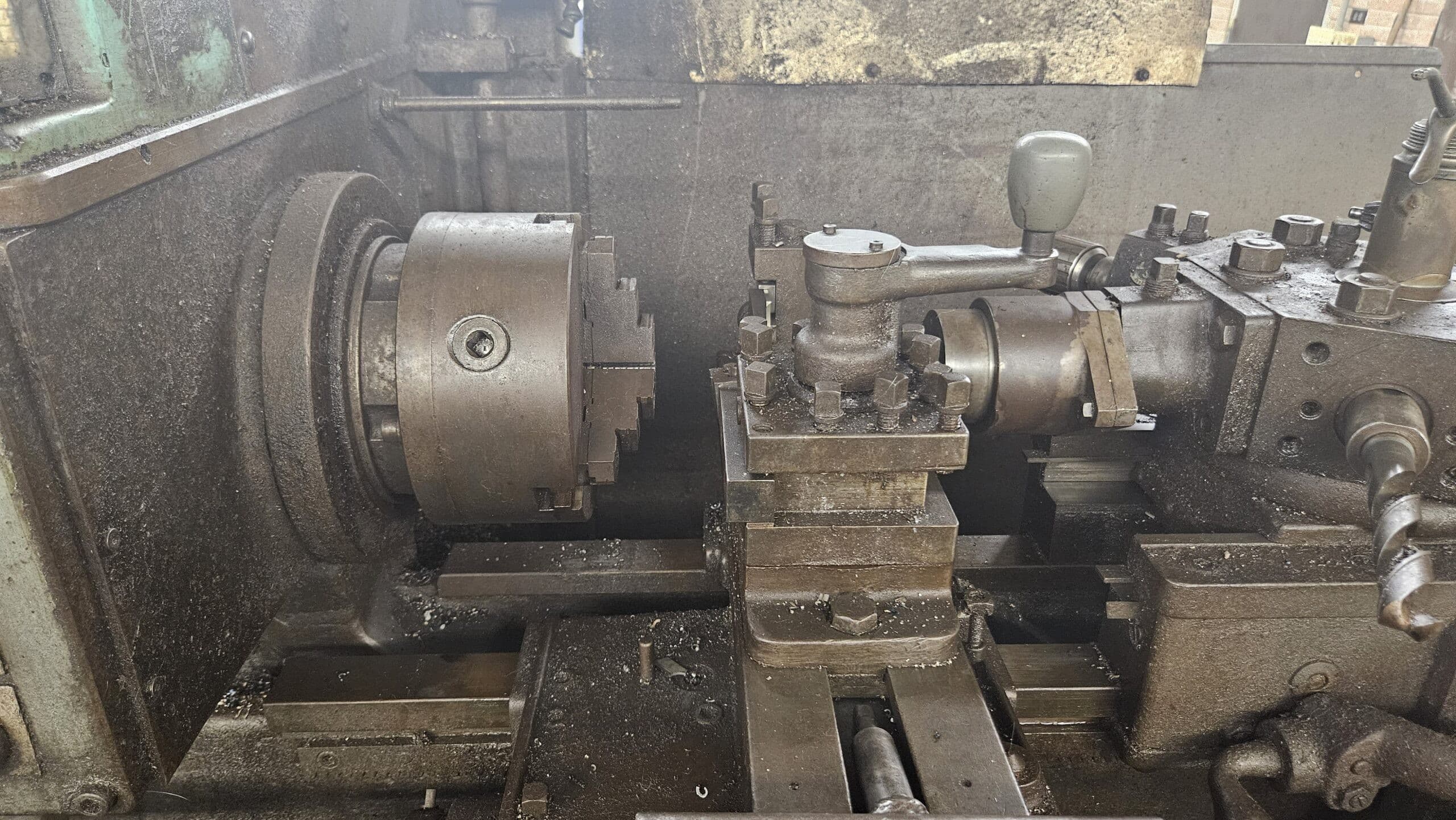

- 8″ 3-jaw chuck and 2″ spindle bore
- Geared headstock with 45–2,262 rpm speed range
- Two-speed 5/10 hp main motor for power and flexibility
- Mechanical longitudinal and cross feeds for repetitive operations
- Heavy cast-iron construction for rigidity and smooth cutting
- Ideal for high-volume shaft, bushing, and general production work
Specifications are based on typical listings for the Warner & Swasey No. 3 M-2200 turret lathe. Actual details may vary by machine. Always verify with the nameplate or OEM documentation.
