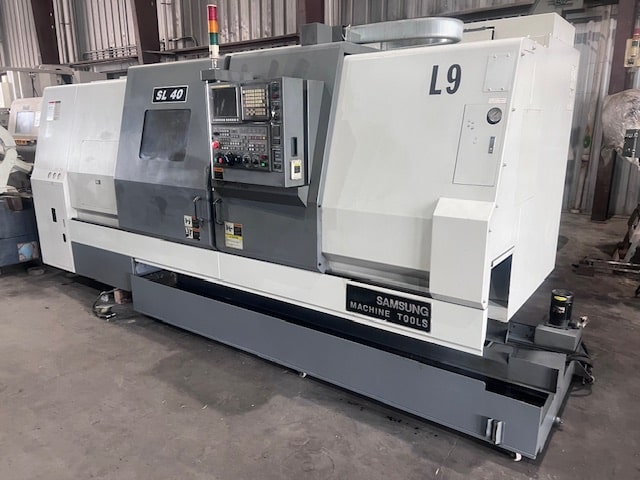

Samsung SL-40/1500 CNC Turning Center — 19.7″ turning diameter, 60.2″ center distance, 30 HP Fanuc 0i-TD, 18″ hydraulic chuck, box way construction. Under power in Houston, available for inspection.
The Samsung SL-40/1500 CNC Turning Center is a heavy-duty, box-way lathe engineered for large-diameter turning applications. With an 18″ hydraulic chuck, 60.2″ center distance, and a powerful 30 HP spindle, it delivers the rigidity and torque needed for demanding production environments. Controlled by a Fanuc 0i-TD and equipped with a programmable hydraulic tailstock, this machine is ready to work.
Installed in 2014 and currently under power in Houston — available for inspection.
Key Features
- Fanuc 0i-TD CNC Control

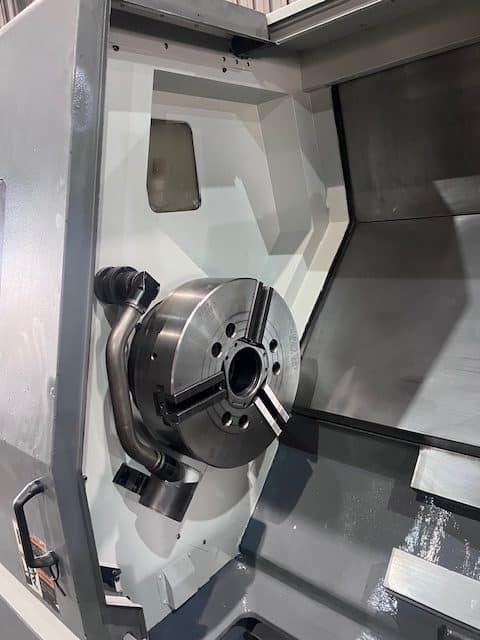

- 18″ Hydraulic 3-Jaw Chuck
- 26.8″ Swing / 60.2″ Center Distance

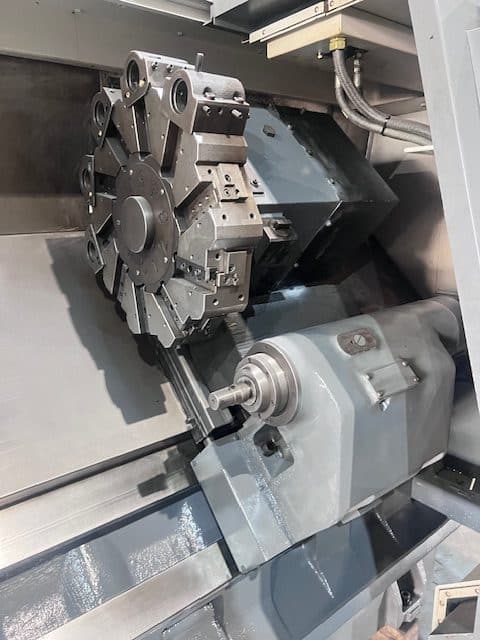

- Programmable Hydraulic Tailstock (body & quill)
- 2-Speed Geared Spindle

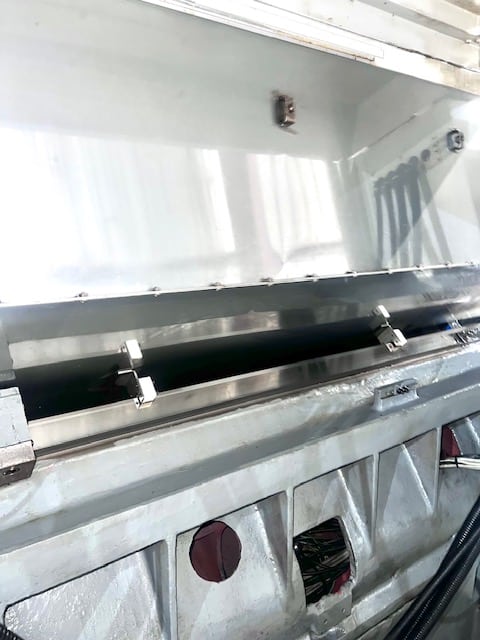

- Box Way Construction
- Standard Mori Seiki-compatible tooling package

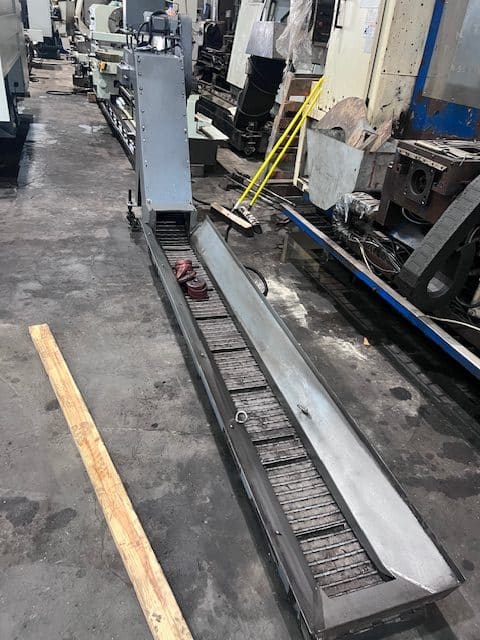

- Chip conveyor, coolant tank, tool presetter
| Specification | Details |
|---|---|
| Machine Type | CNC Turning Center |
| Manufacturer | Samsung / SMEC |
| Model | SL-40/1500 |
| CNC Control | Fanuc 0i-TD |
| Year Installed | 2014 |
| Swing | 26.8″ |
| Turning Diameter | 19.7″ |
| Center Distance | 60.2″ |
| Chuck Size | 18″ |
| Bar Capacity | 4.6″ Through Chuck / 5.2″ Through Spindle |
| X Axis Travel | 11″ |
| Z Axis Travel | 63.19″ |
| Rapid Traverse X/Z | 472 / 591 IPM |
| Spindle Nose | A2-11 |
| Spindle Speed | 0–1,800 RPM |
| Spindle Motor | 30 HP |
| Machine Dimensions | 197″ x 75″ |
| Machine Weight | 20,500 lbs |
| Hydraulic Chuck | 18″ 3-Jaw |
| Tailstock | Programmable Hydraulic |
| Spindle | 2-Speed Geared |
| Construction | Box Way |
| Tooling | Standard package installed (accepts Mori Seiki tooling) |
| Chip Conveyor | Yes |
| Coolant Tank | Yes |
| Tool Presetter | Yes |
| Condition | Used — Under Power in Houston |
