#3230 USED 2013 CAK360X450 SLANT BED
$25,000.00
The CAK360×450 is a compact two-axis CNC turning center with a 360 mm swing and 450 mm work length, designed for everyday accuracy, short-run production, and prototype work.

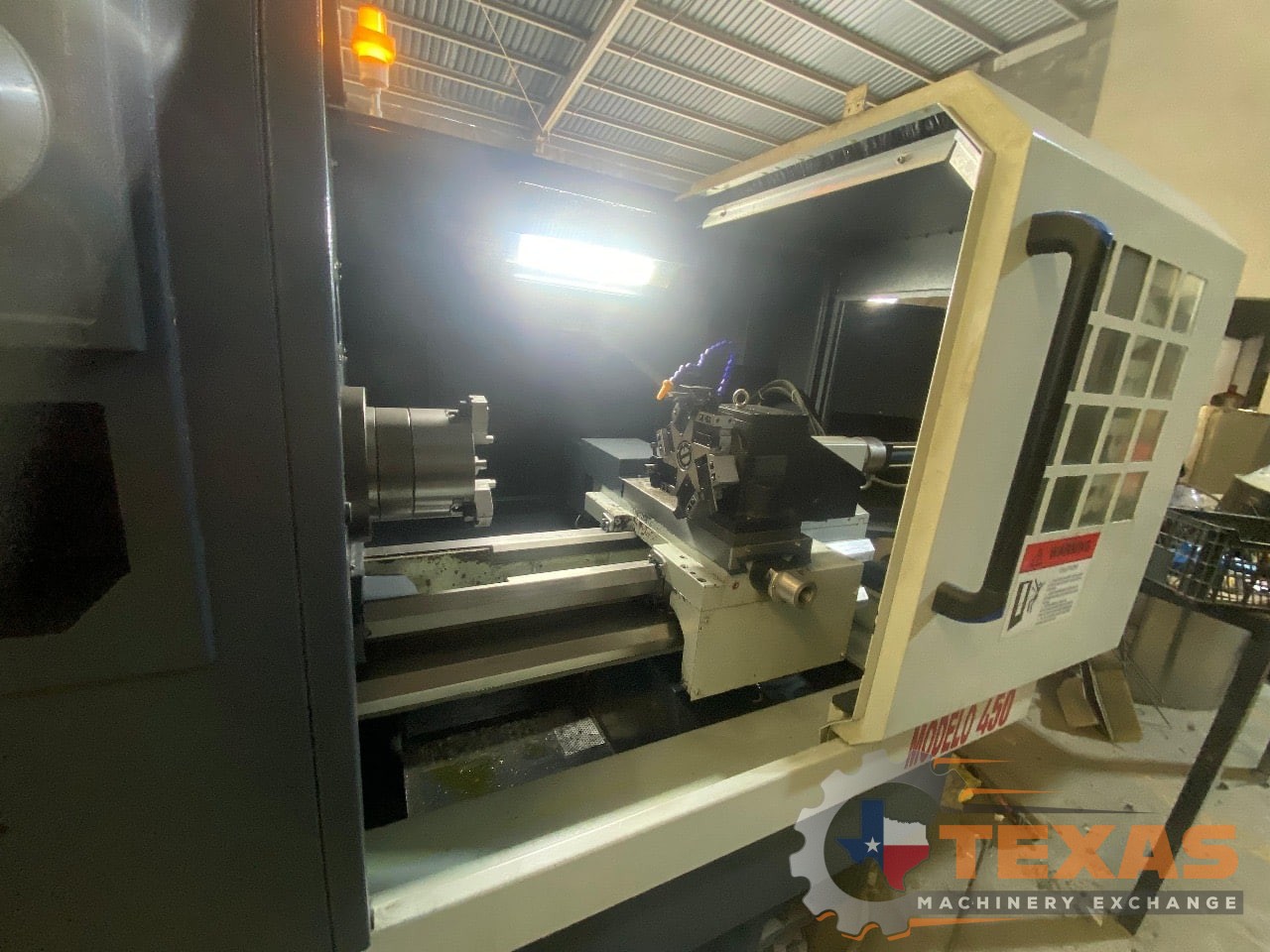

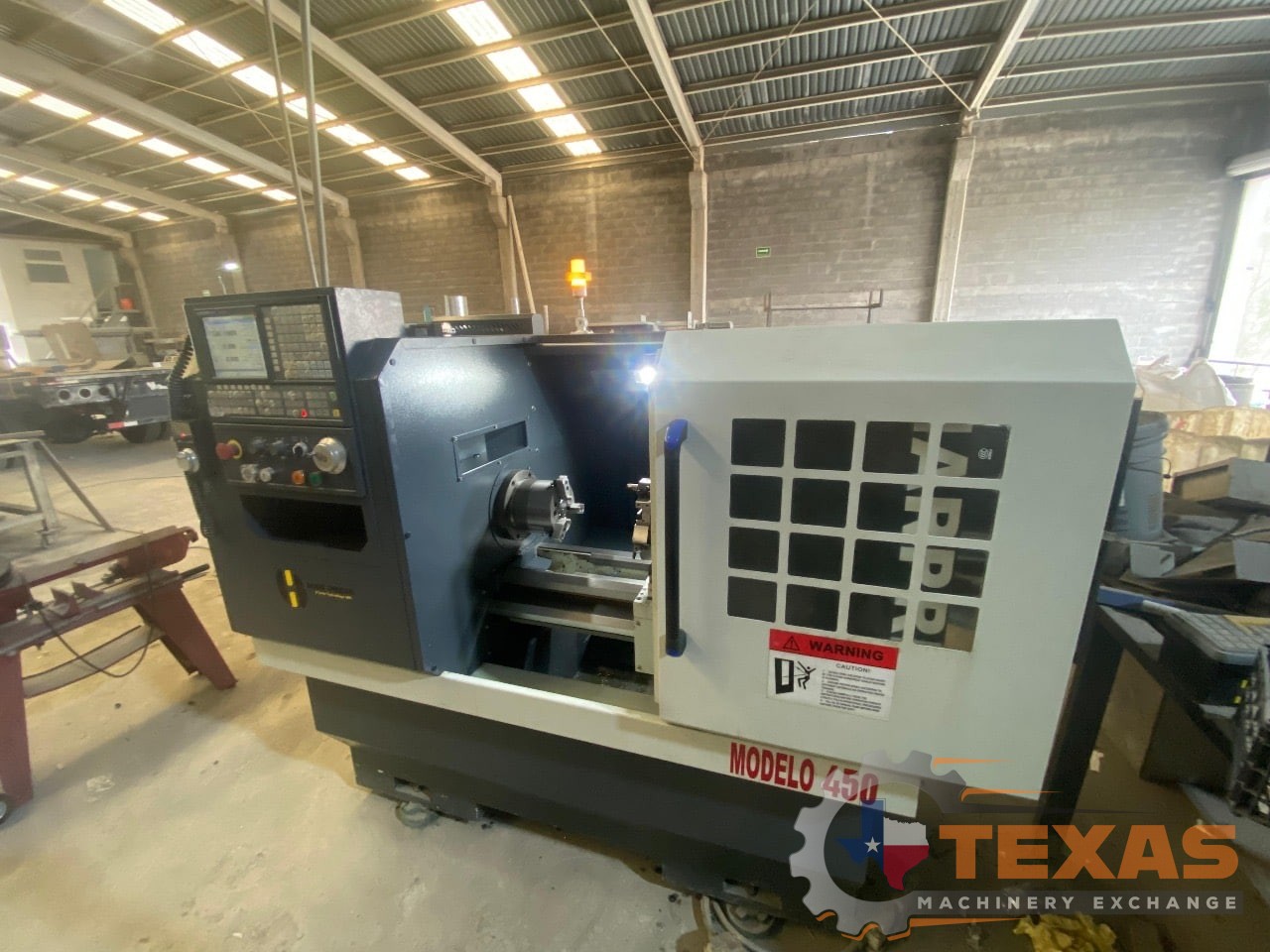

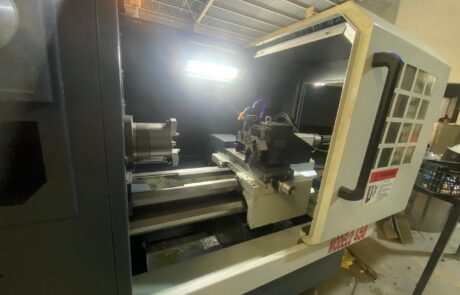

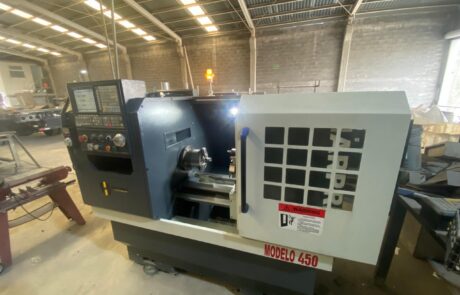

The CAK360×450 is a compact CNC turning center built for dependable performance in bushings, sleeves, couplings, and light shaft work. With a maximum swing of 360 mm (≈14.2″) and a turning length of 450 mm (≈17.7″), it provides a practical solution for small-to-medium sized components. The machine includes enclosed guarding and a sliding access door to contain chips and coolant, enhancing operator safety and shop cleanliness compared with open manual lathes.

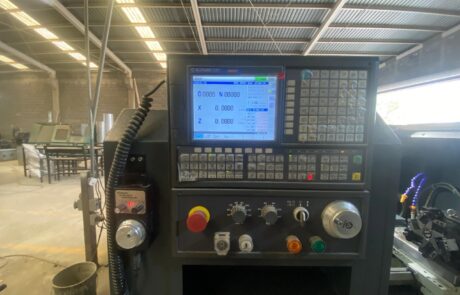

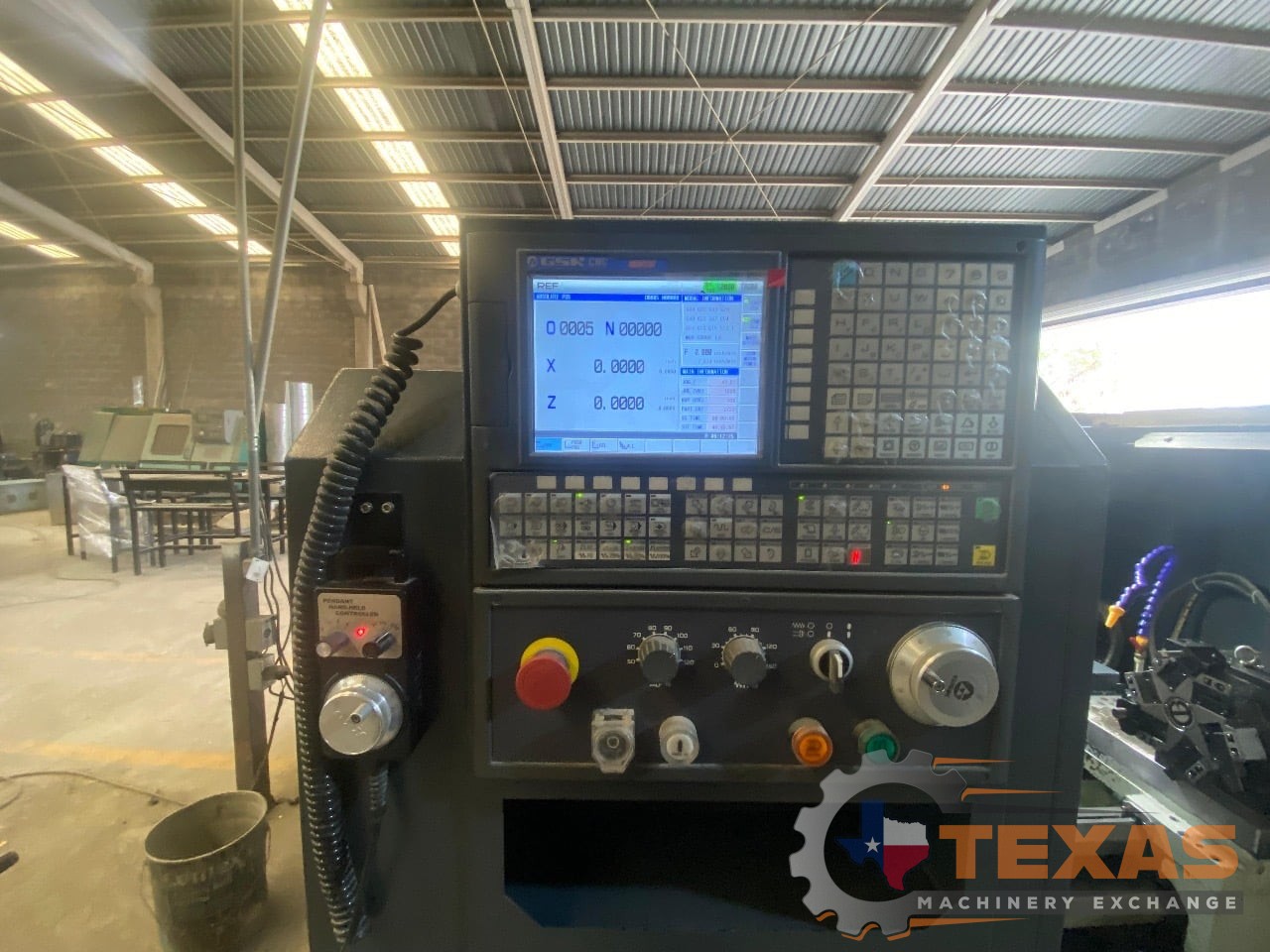

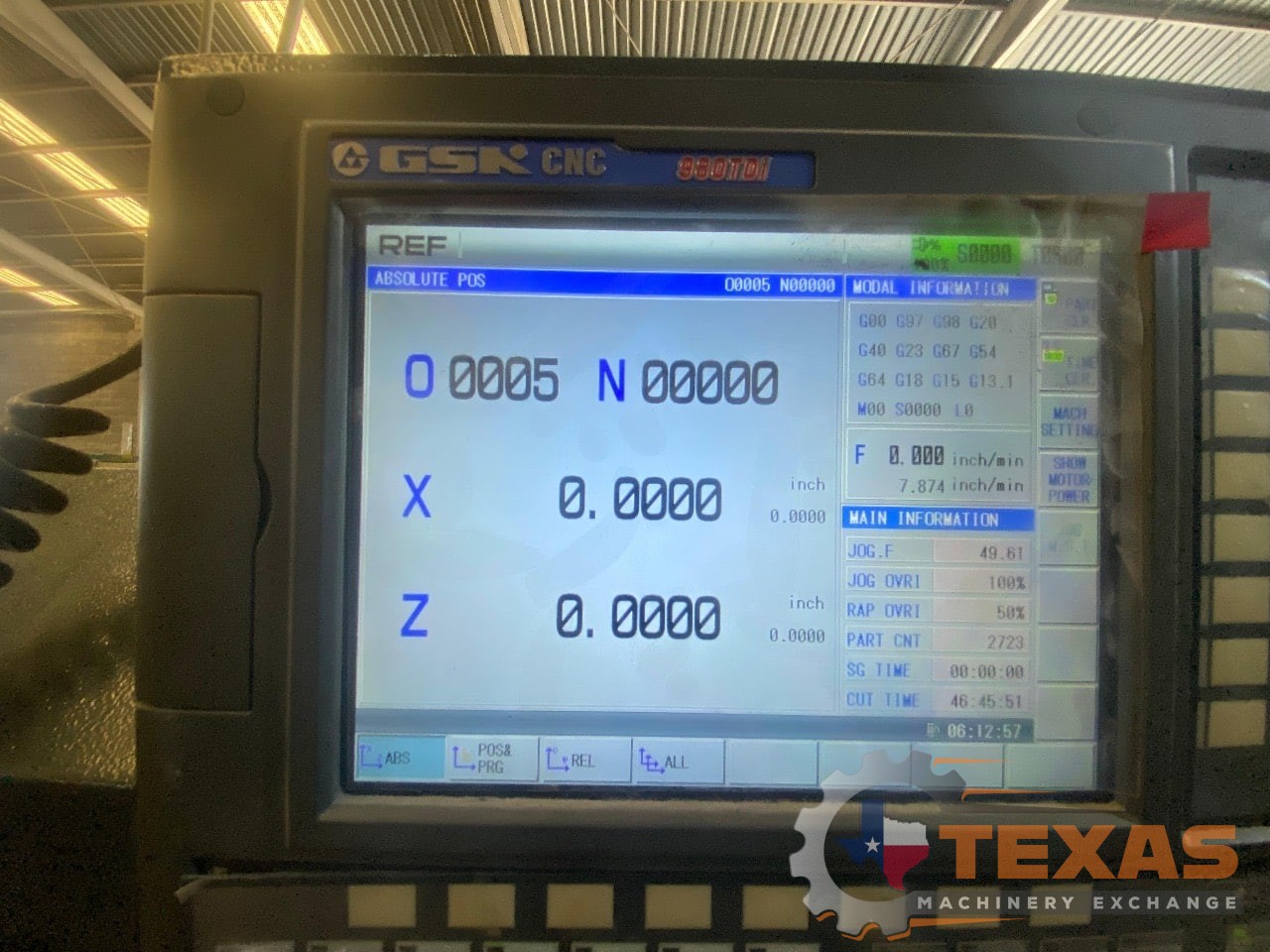

A Fanuc-style CNC interface offers straightforward programming, manual jog with a handwheel, and clear status indication. An 8-position tool turret allows quick indexing between OD/ID turning, facing, threading, and grooving tools, reducing setup and cycle times. The spindle is designed for a 6″ class chuck, A2-5 mount , supporting up to ~4,000 rpm with ~7.5 kW of drive power. A tailstock provides support for shaft-type parts up to 450 mm long, improving rigidity and accuracy.
| Specification | Value |
|---|---|
| Model | CAK360×450 |
| Machine Type | CNC Turning Center |
| Max Swing | 360 mm (≈14.2″) |
| Max Turning Length | 450 mm (≈17.7″) |
| Chuck Size | 6″ hydraulic |
| Spindle Nose | A2-5 |
| Spindle Speed | Up to ~4,000 rpm |
| Spindle Power | ~7.5 kW (≈10 hp) |
| Turret Stations | 8-position |
| Control | Fanuc-style CNC interface |
| Tailstock | Yes, for shaft support |
| Final Listing Price | Request Quote |
Features & Options
- Compact footprint with 14.2″ swing × 17.7″ turning length
- 6″ hydraulic chuck, likely A2-5 spindle mount
- ~4,000 rpm spindle with ~10 hp drive
- 8-position tool turret for versatile setups
- Enclosed guarding and sliding door for safety and cleanliness
- Fanuc-style CNC control with manual handwheel jog
- Tailstock for improved shaft work rigidity
- Ideal for bushings, sleeves, couplings, and prototype work
- Strong upgrade path from manual lathes
Specifications may vary by configuration. Verify with manufacturer.
