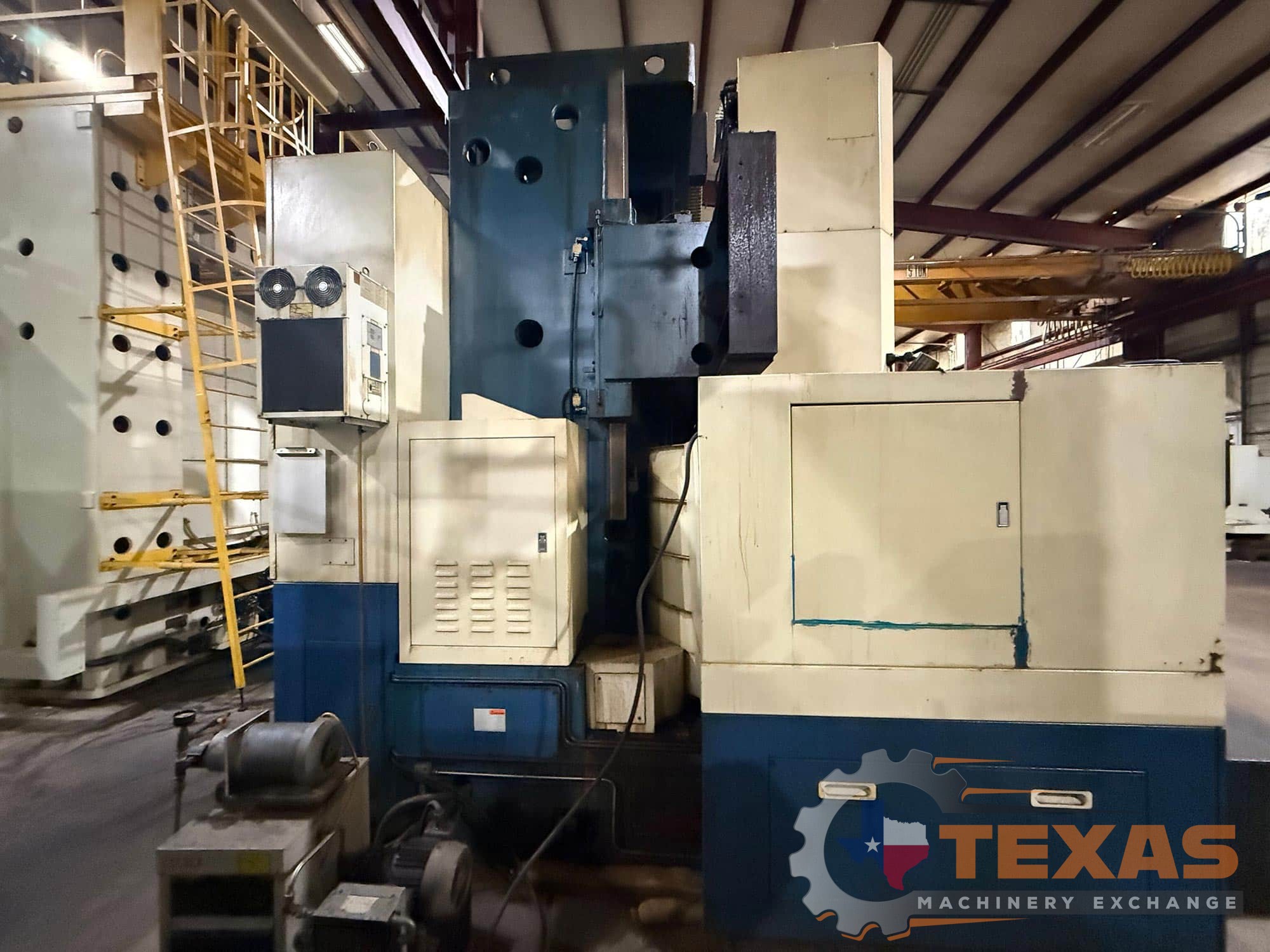

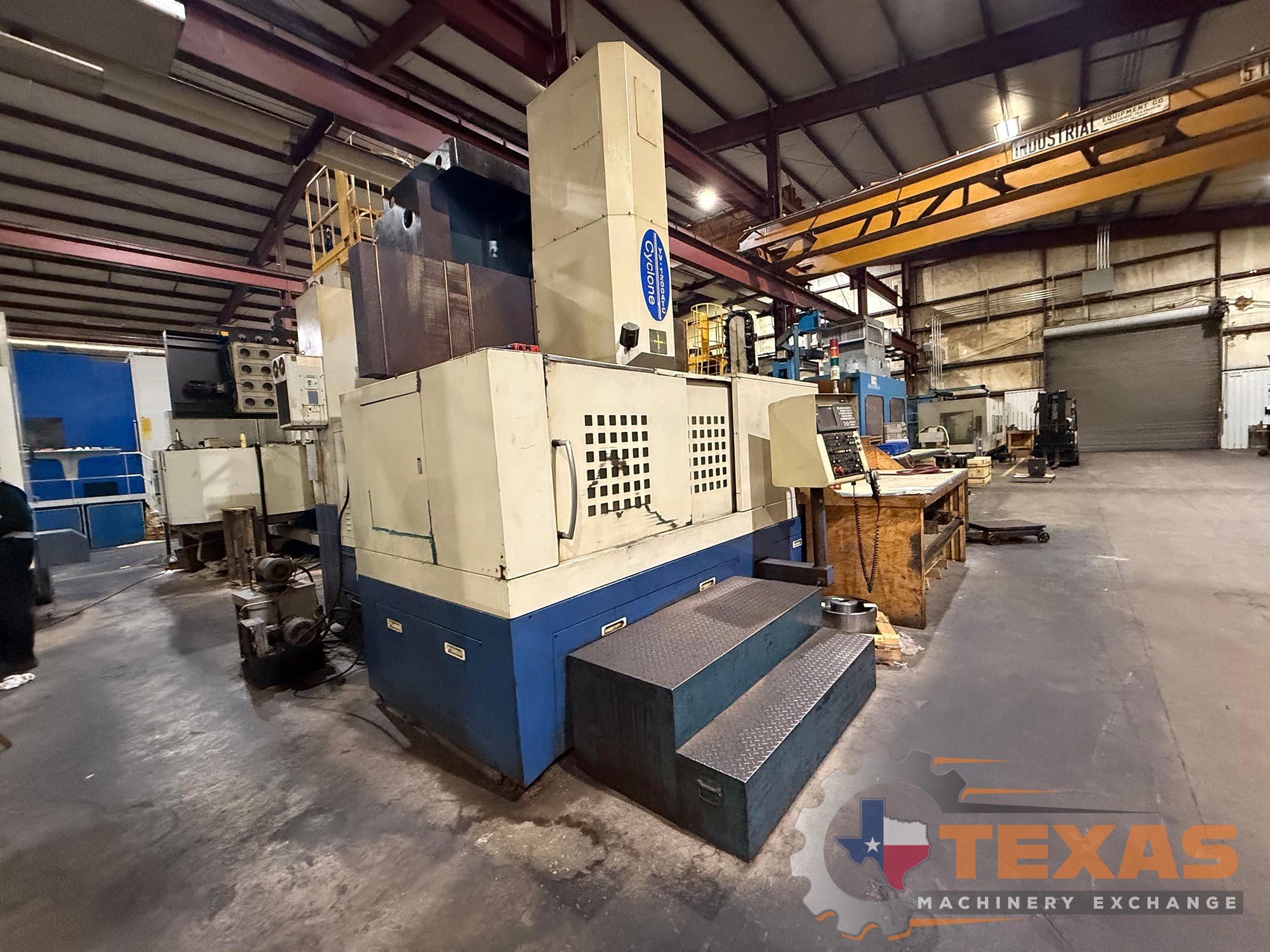

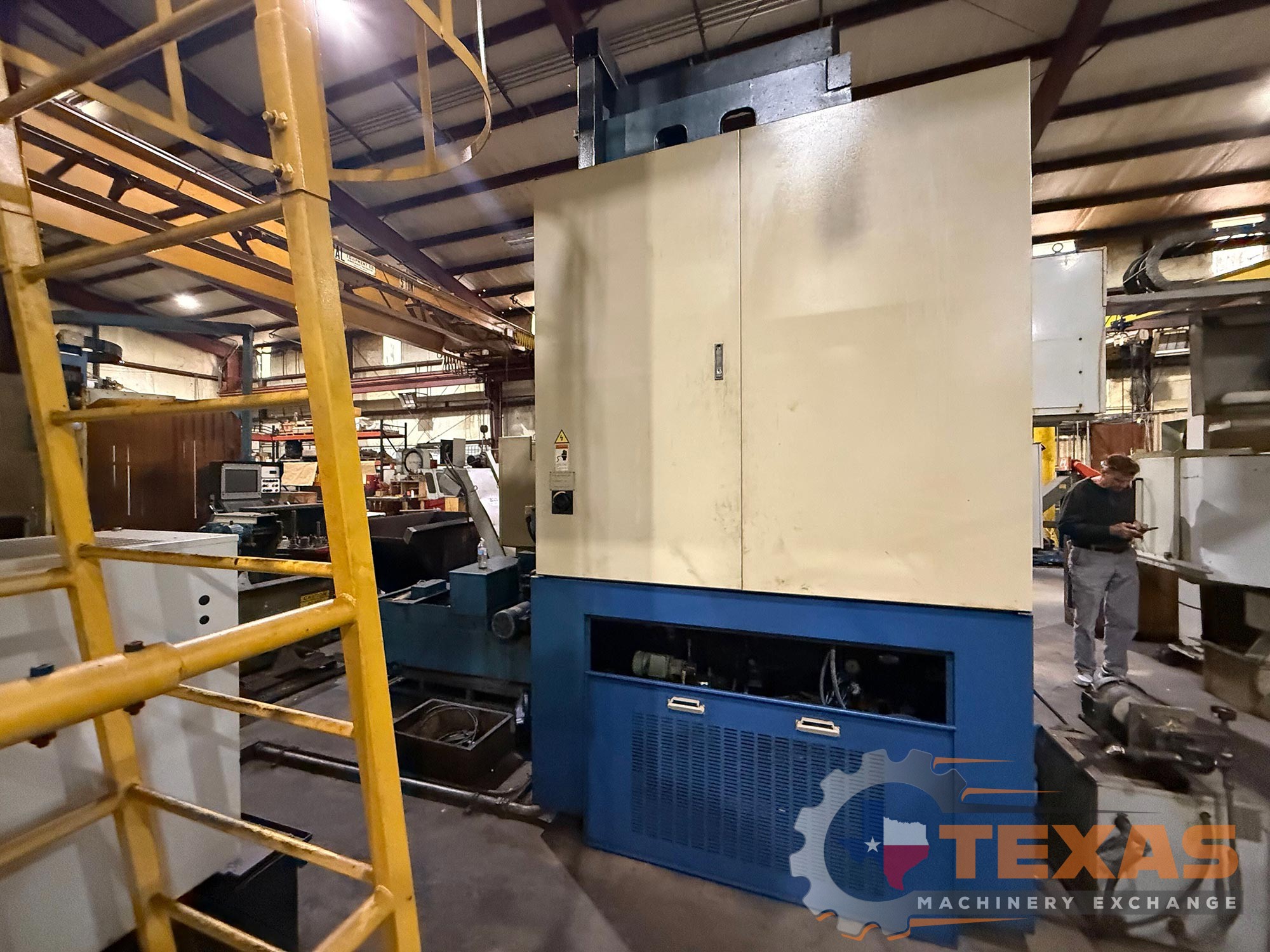

The 2005 YOU JI 1300 ATC Cyclone is a heavy-duty vertical machining center engineered for large-part, high-rigidity milling applications. Built with a robust column structure, integrated rotary table, and automatic tool changer, this machine delivers reliable performance for demanding production environments. Equipped with a Fanuc Series 18 control and CAT 50 spindle interface, the YOU JI 1300 ATC Cyclone is well suited for aerospace, energy, mold, and heavy industrial machining where stability and torque are critical.
The YOU JI 1300 ATC Cyclone from 2005 is a large-frame vertical machining center designed to handle oversized and heavy workpieces with confidence and precision. Manufactured by YOU JI Machine Industrial Co., Ltd., this model reflects the company’s reputation for building rigid, long-life CNC machines for high-load machining operations. The Cyclone series is particularly known for its heavy cast construction, wide box-way support, and excellent vibration damping, making it ideal for aggressive cutting conditions.

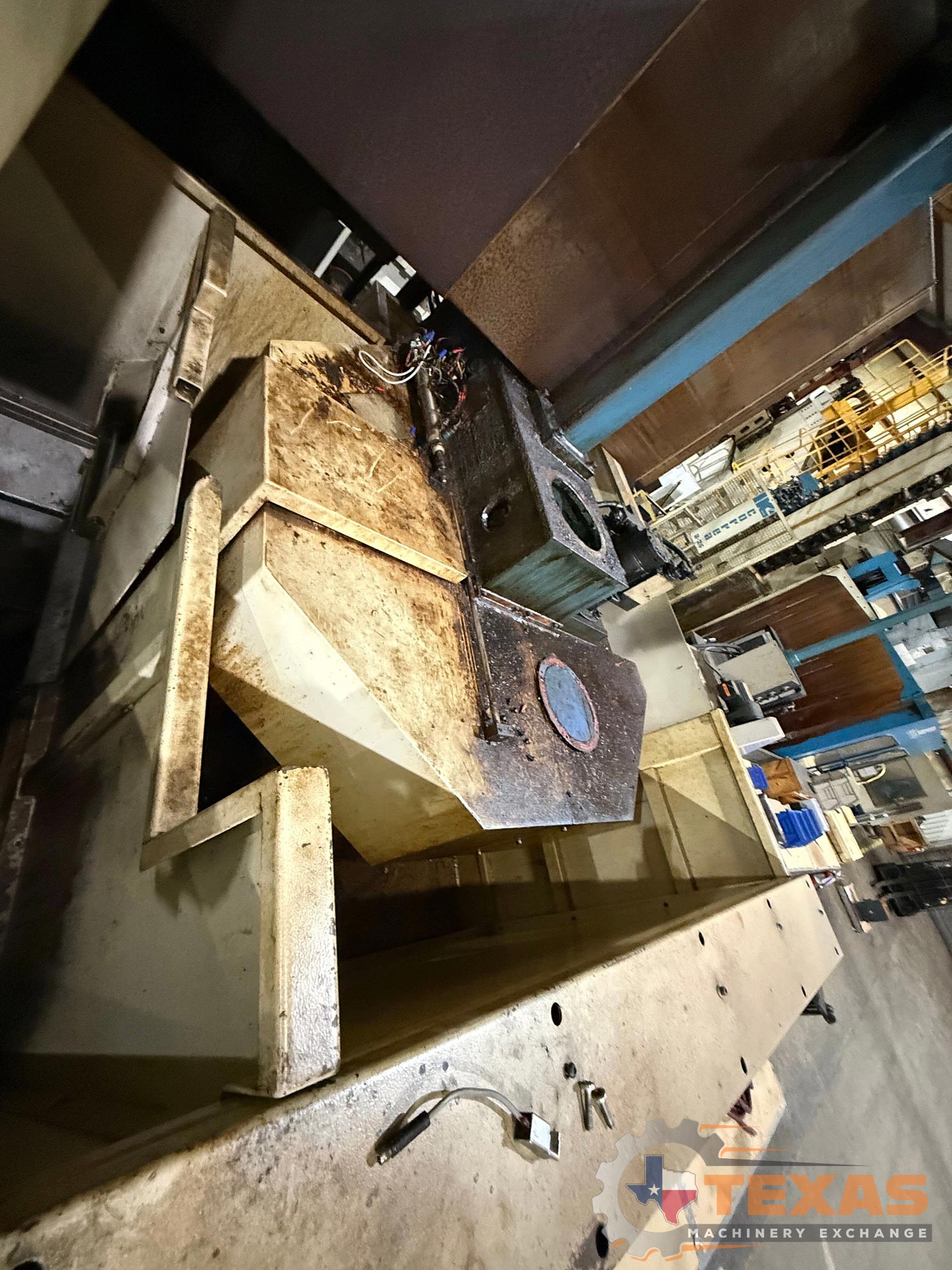

This machine features a large rotary table that allows efficient machining of round or complex components without repeated re-fixturing. The CAT 50 spindle provides the torque and rigidity required for heavy milling, drilling, and boring operations across a wide range of materials. An automatic tool changer increases productivity by minimizing setup time and enabling multi-operation machining within a single cycle.

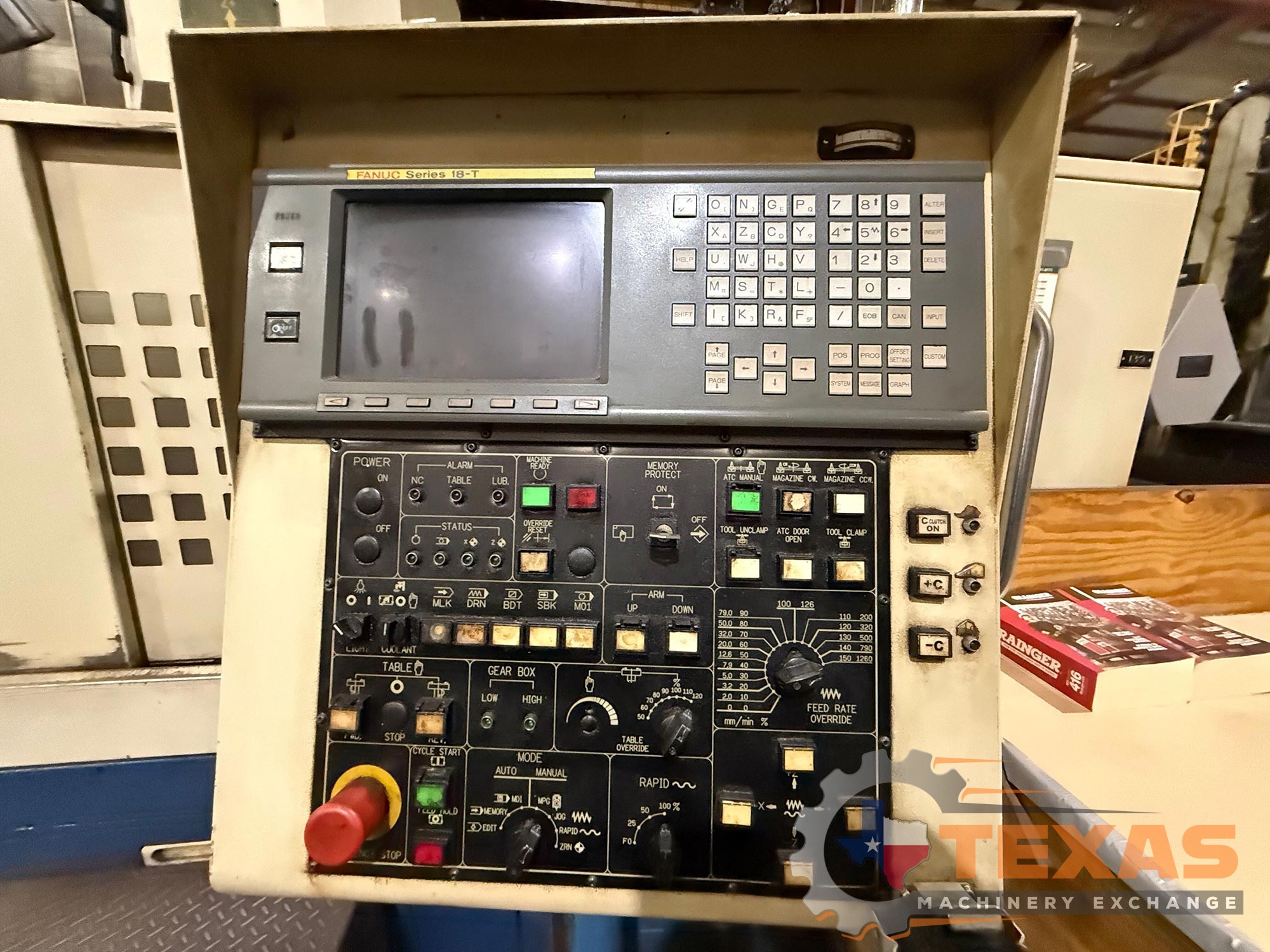

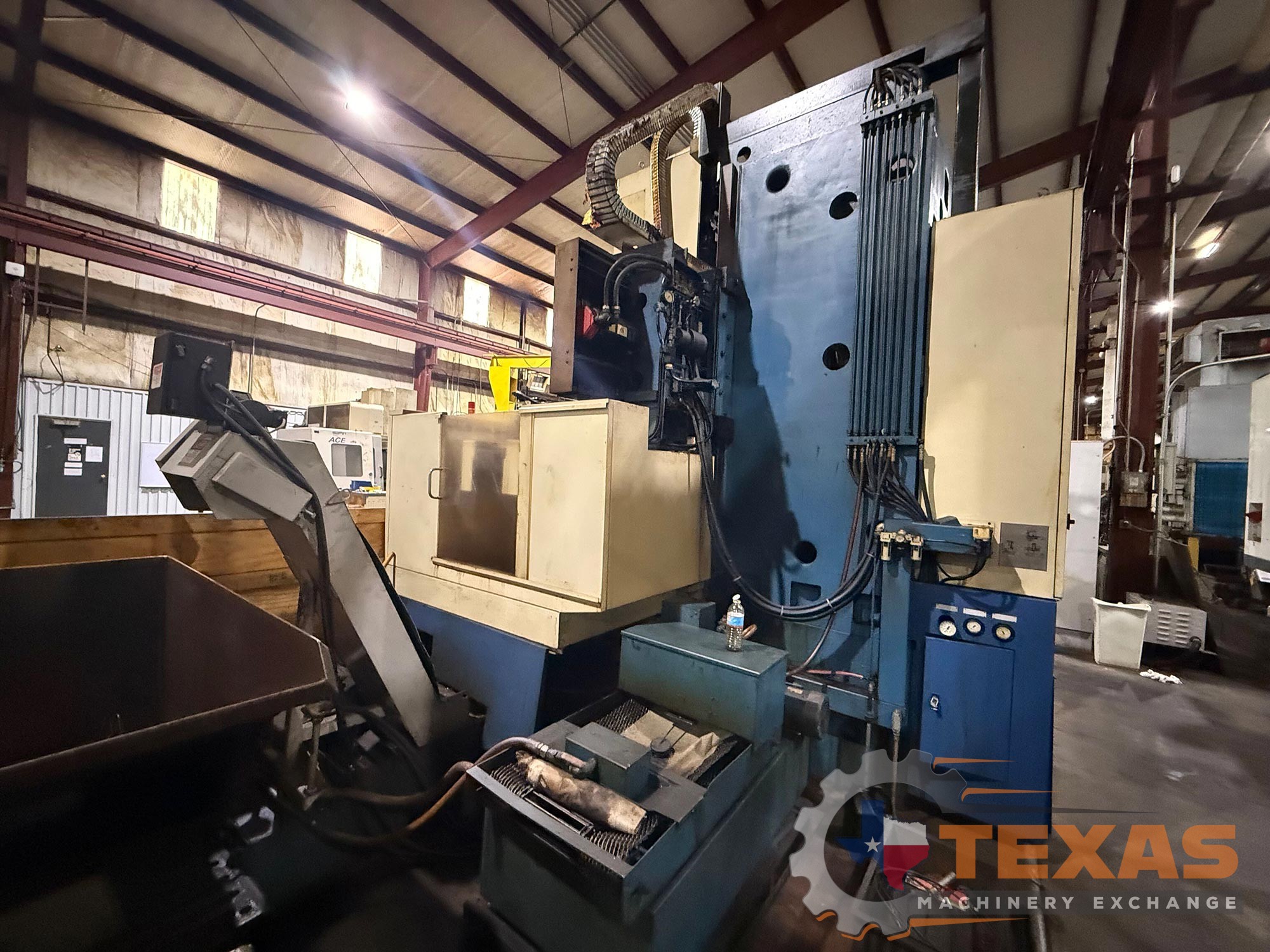

Controlled by a Fanuc Series 18 CNC system, the YOU JI 1300 ATC Cyclone offers proven reliability, straightforward programming, and broad service support. The full enclosure and integrated chip management system help maintain a clean working environment, while centralized lubrication and hydraulic systems support long-term accuracy and machine longevity.
This machining center is well suited for industries such as heavy equipment manufacturing, power generation, oil and gas, aerospace structures, and large mold or die work. Its combination of size, rigidity, and automation makes it a strong candidate for shops seeking dependable large-part machining capability.
| Specification | Value |
|---|---|
| Year | 2005 |
| Manufacturer | YOU JI Machine Industrial Co., Ltd. |
| Model | 1300 ATC Cyclone |
| Machine Type | Vertical Machining Center (Large Frame) |
| Axis Count | 3-Axis CNC |
| Table Diameter | ≈ 51″ (1,300 mm) rotary table |
| Maximum Table Load | ≈ 6,600 lb (3,000 kg) |
| X-Axis Travel | ≈ 51″ (1,300 mm) |
| Y-Axis Travel | ≈ 35″ (900 mm) |
| Z-Axis Travel | ≈ 31″ (800 mm) |
| Spindle Taper | CAT 50 |
| Spindle Speed | Up to ~6,000 rpm |
| Spindle Motor | ≈ 30 hp (22 kW) |
| Tool Capacity | Automatic Tool Changer (ATC) |
| Control System | Fanuc Series 18 CNC |
| Machine Construction | Heavy cast iron frame with box ways |
| Machine Weight | ≈ 33,000 lb |
| Final Listing Price | Request Quote |
Features & Options
- Large-frame vertical machining center designed for heavy and oversized components
- 51″ rotary table allows efficient machining of round or complex parts without repeated setups
- Rigid box-way construction for excellent vibration damping and heavy cutting capability
- CAT 50 spindle provides high torque for aggressive milling, drilling, and boring operations
- Automatic tool changer enables multi-operation machining in a single setup
- Fanuc Series 18 CNC control offers reliable performance and widely supported programming
- Full enclosure with integrated chip management system for clean operation
- Centralized lubrication and hydraulic systems for long-term machine durability
- Ideal for heavy equipment manufacturing, oil & gas components, aerospace structures, and large mold work
Specifications may vary by configuration. Verify with manufacturer.
