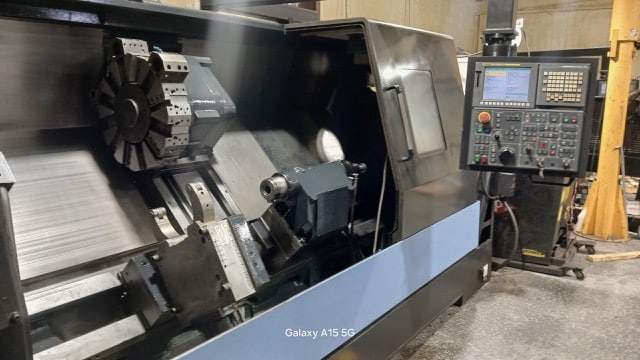

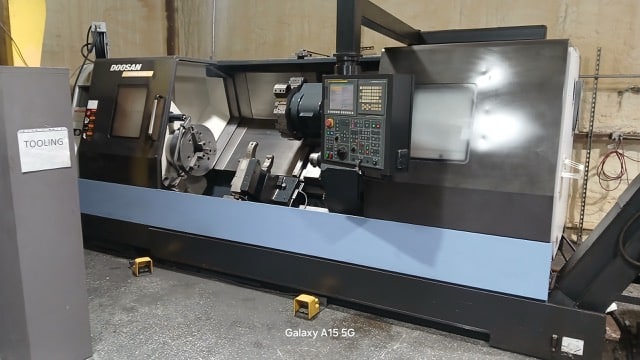

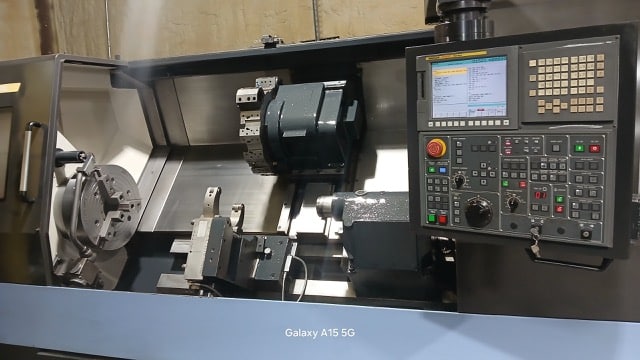

This 2012 Doosan Puma 400LC is a heavy-duty CNC turning center built for large-diameter, high-precision work. With a 23.2″ turning diameter, 81.7″ turning length, 50 HP spindle, and a 6.5″ bar capacity, it handles demanding production turning with ease. Equipped with a full hydraulic SMW Auto-Blok steady rest, chip conveyor, and tailstock — ready for immediate use.
On location under power and available for inspection. Contact us today for pricing, availability, and additional machine details.
The 2012 Doosan Puma 400LC CNC Turning Center is a heavy-duty production lathe designed for large workpieces requiring consistent accuracy and high material removal rates. With a 23.2″ maximum turning diameter, 81.7″ turning length, and a powerful 50 HP spindle motor, this machine is built for steel service centers, heavy fabrication shops, and oil & gas machining environments.
The Puma 400LC features a 6.5″ bar capacity, 12-position turret, and rapid traverse rates of 630 IPM (X) and 790 IPM (Z) for fast, efficient cycle times. The machine includes a full hydraulic SMW Auto-Blok steady rest, chip conveyor, tailstock, and tool setter. Approximately 7,000 hours and reported in excellent condition.
Key Features
- 23.2″ maximum turning diameter
- 81.7″ turning length
- 50 HP spindle motor / 1,500 RPM max spindle speed
- 6.5″ bar capacity through A2-15″ spindle nose
- 7.1″ spindle bore
- 12-position turret
- Rapid traverse: 630 IPM (X) / 790 IPM (Z)
- Hydraulic chuck: 21″

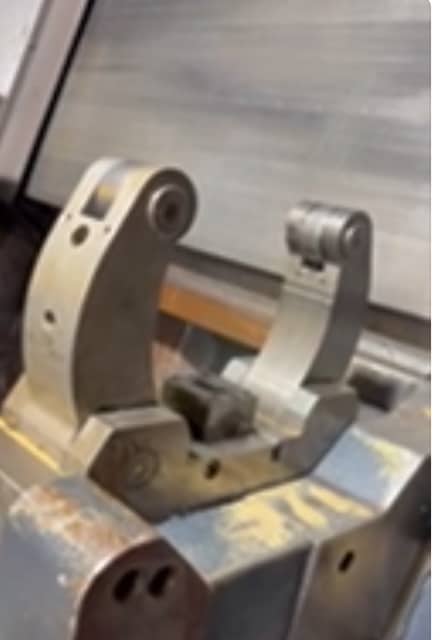

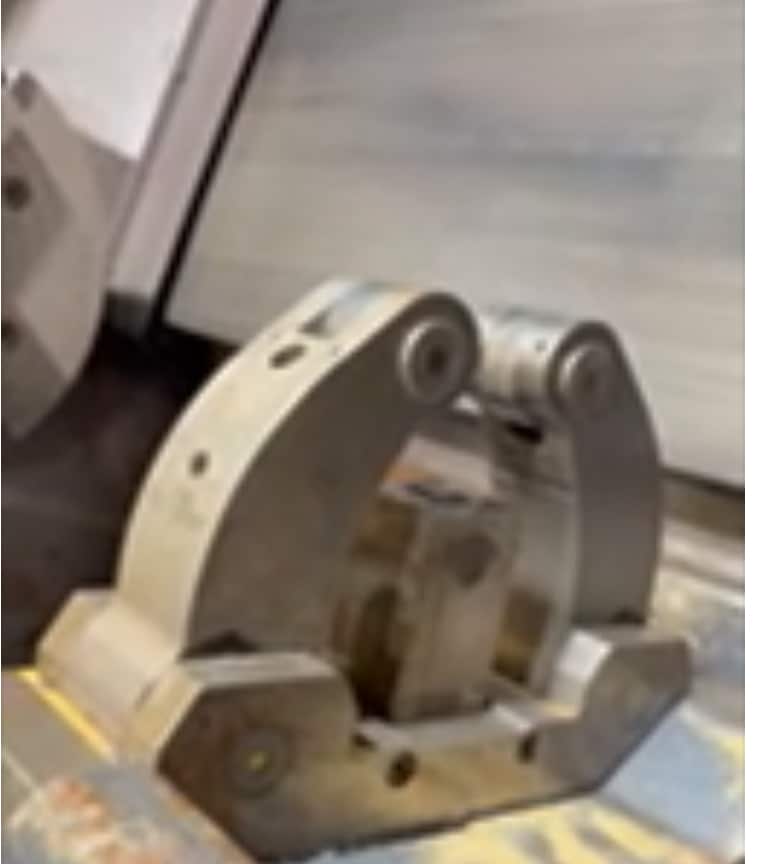

- Full hydraulic SMW Auto-Blok steady rest
- Chip conveyor, tailstock, and tool setter included
- Approx. 7,000 hours — excellent condition
Features & Options
- 50 HP spindle motor with 1,500 RPM max speed — handles heavy-duty turning operations
- 81.7″ maximum turning length with 23.2″ turning diameter
- 12-position turret for fast tool indexing and reduced cycle times
- SMW Auto-Blok full hydraulic steady rest included
- Programmable tailstock with MT #5 quill — 4.7″ travel
- Chip conveyor and tool setter included
- 21″ hydraulic chuck — ideal for large-diameter workpieces
- Rapid traverse: 630 IPM (X) / 790 IPM (Z)
- Excellent condition — verified under power
Specifications reflect known machine data. Actual details may vary. Buyer is responsible for independent verification prior to purchase.
| Specification | Details |
|---|---|
| Machine Type | CNC Turning Center |
| Manufacturer | Doosan |
| Model | Puma 400LC |
| Year | 2012 |
| Hours | Approx. 7,000 |
| Maximum Swing | 30.3″ |
| Maximum Turning Diameter | 23.2″ |
| Maximum Turning Length | 81.7″ |
| Bar Capacity | 6.5″ |
| X Axis Travel | 14.2″ |
| Z Axis Travel | 84.8″ |
| Spindle Motor | 50 HP |
| Spindle Speed | 1,500 RPM |
| Spindle Nose | A2-15″ |
| Spindle Bore | 7.1″ |
| Turret Positions | 12 |
| Rapid Traverse X | 630 IPM |
| Rapid Traverse Z | 790 IPM |
| Tailstock Quill | 4.7″ / MT #5 |
| Hydraulic Chuck | 21″ |
| Steady Rest | SMW Auto-Blok Full Hydraulic |
| Chip Conveyor | Yes |
| Tool Setter | Yes |
| Tailstock | Yes |
| Condition | Excellent |
| Approx. Shipping Weight | 25,500 lbs |
| Approx. Shipping Dimensions | 210″ L x 94″ W x 89″ H |
